R32 Monobloc HE - A2W

R32 Monobloc HE - A2W

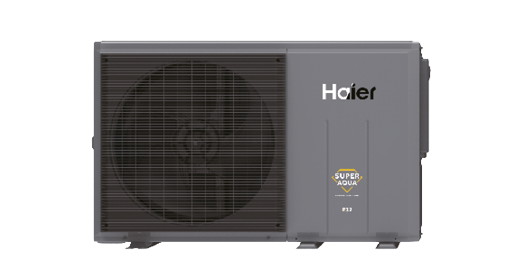

Discover the Air-to-Water Heat Pump Monobloc HE, powered by R32 refrigerant. Covering a wide range of applications, it is available in 5kW, 7kW, 9kW, 11kW, 14kW and 16kW sizes.

With market leading A+++/A+++ performances, the Monobloc HE offers a very wide Operating Range, being able to run normally even at -28°C.

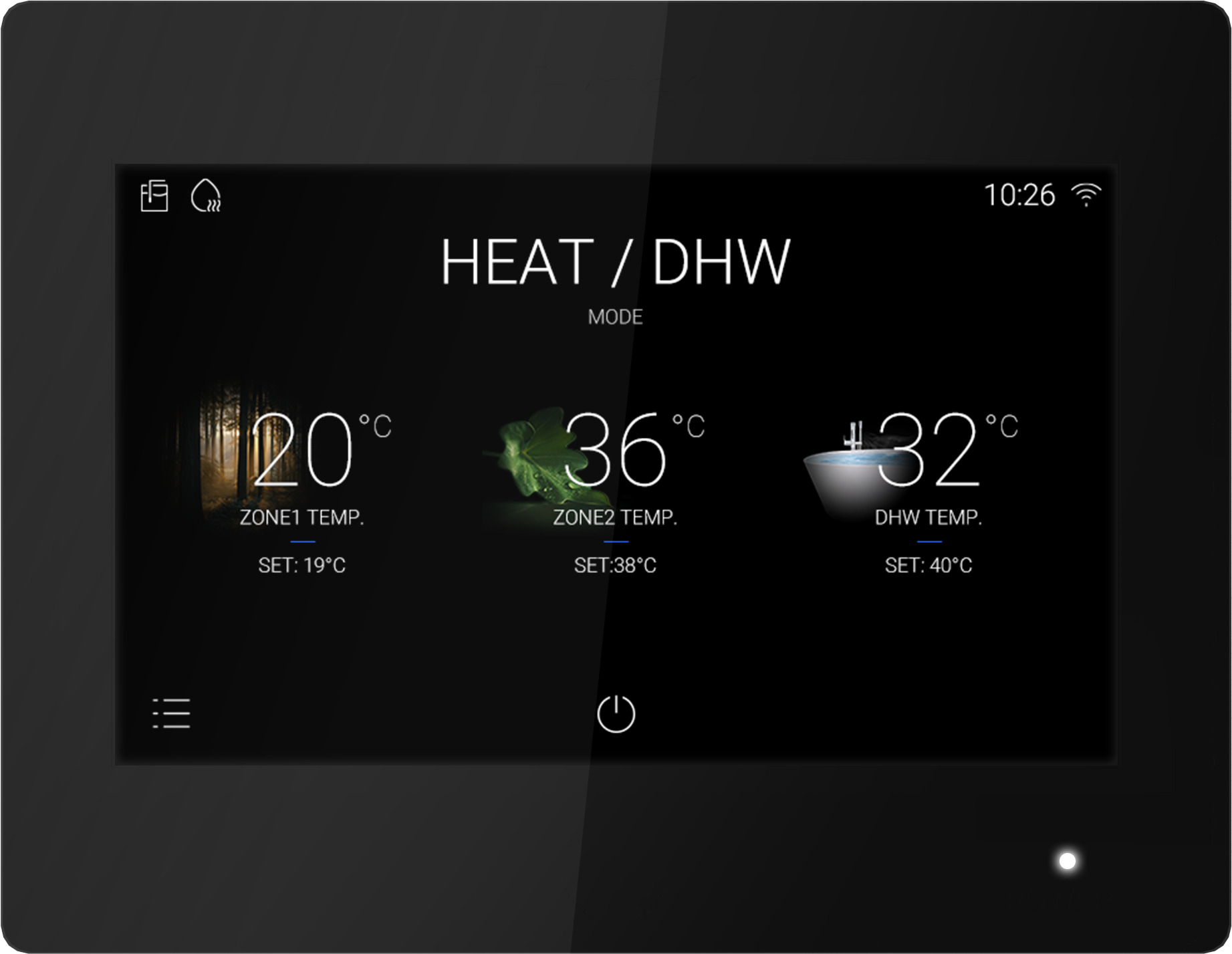

2-Zone Control

When there are different room temperature requirements, two zone temperature control through separate heating or cooling circuits is possible. Adjust and maintain two different water temperatures to achieve intelligent control and saving energy.

A+++

The unit offers a high energy-efficiency level, allowing a lower consumption when in use.

Anti-Freezing

The Heat pump will auto heat to 15°C when the ambient temperature reaches below 2°C and the water temperature is below 7°C.

Auto Mode

Automatically adjust the cooling or heating function of the air conditioner based on the desired temperature and room temperature.

Pool Heating

Provides control to manage the temperature of the pool water.

Climate Curve

Both heating and cooling water temperatures are optimally configured when considering outdoor temperature, both in comfort and efficiency terms. The Climate curve configuration allows the system to adapt to outdoor temperature fluctuation with different temperature profiles tailored for each user’s preferences.

DHW Solar Tank Thermal Control

The feature allows the control of the solar thermal functions of the tank, for heating domestic hot water.

Smart Grid

Based on the signal from the power grid company, the outdoor unit will automatically adjust the capacity output.

Additional Information

The Monobloc range is ideally suited for install by traditional plumbers as the refrigerant circuit is sealed and the pipework from the outdoor to indoor carries only water. This system is perfect for both space heating and domestic hot water supply.

Technical Specifications | R32 Monobloc HE - A2W
