1-Way Cassette - Monosplit
> 1-Way Cassette - Monosplit
1-Way Cassette - Monosplit

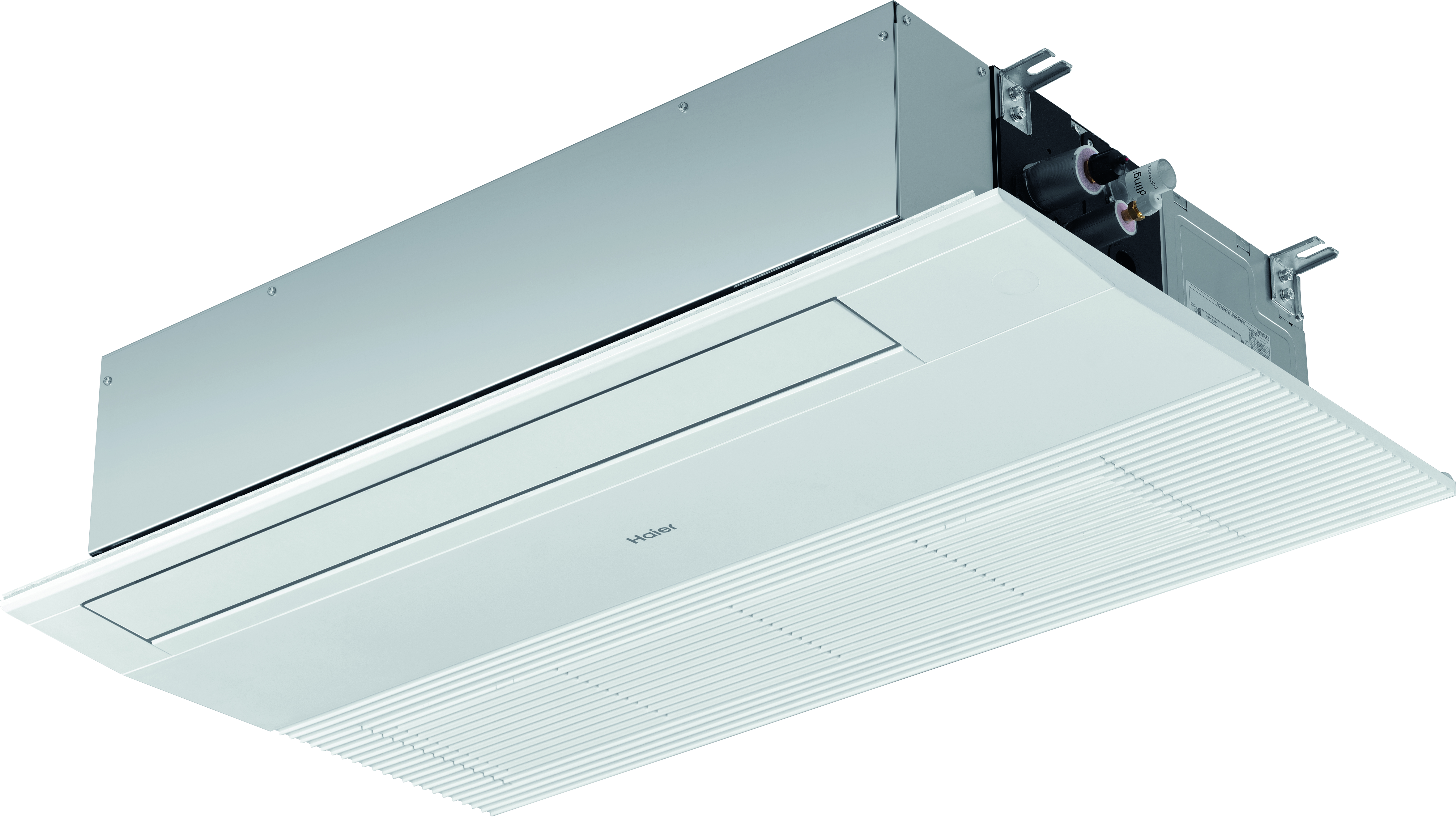

The 1-Way Cassette, coming in a modern, thin and linear design panel, offers a very low sound level. It is equipped with 3D ventilation as well as a Standard Condensate Drain Pump and a DC Inverter Fan Motor, the 1-Way Cassette ensures comfortable air all day long.
Fresh Air
The exchange of air allows the introduction of clean air into the environment. The "Fresh Air" air inlet predisposition introduces fresh air into the room, up to a maximum of 20% of the nominal air flow of the unit.
Condensate Drain Pump
This guarantees a maximum prevalence of 600 mm measured from the base of the machine.
There is the possibility of performing condensate drain by gravity (reversible on both sides).
On/Off Card
Our unique key card management system reduces energy costs without compromising guests' comfort. When entering or leaving a hotel room, the smart key cards automatically communicate with the unit to turn off the air conditioning or heating.
Compact Design
The unit has a compact design for flexible installation in confined spaces.
hOn WiFi
The hOn app enables to take control of all the Haier appliances in your Smart Home from your smartphone or tablet. The app allows the management of all the basic functions, respond to voice commands because it is compatible with vocal assistants, and more.
UVC Sterilisation
The UVC Sterilisation module help keeping a healthy and clean indoor air. Haier’s UVC generator has received a Certificate of Inactivation on the Novel Coronavirus, from leading Texcell S,A, an independent viral testing laboratory in France.
Additional Information
High Flexibility and Premium Functionalities
THIN UNIT
With a 185mm thickness, the new 1-Way Cassette offers an easy installation and is suitable for diverse ceiling type.
HIGH LIFT-UP DRAIN PUMP
This can lift condensed water up to 600mm, which make installation even more flexible and adapted to many layouts.
CLEAN AND HEALTHY AIR
With silver ion health filter, an antibacterial filter, its bactericidal rate is as high as 99.9%, mildew grade is 0.
We have also included the UVC Sterilisation module to the unit, which emits short-wave ultraviolet rays near the return air outlet to sterilise the air entering the air conditioner, without harmful chemicals and residues.
SMART FUNCTIONALITIES
The 1-Way Cassette offers Smart parameters, such as the Room Card option (allowing the use of room cards to control the unit (on and off), very suitable for applications such as hotel) and Wi-Fi connection to our hOn App.
Technical Specifications | 1-Way Cassette - Monosplit
Dokumentation
| User Manuals |
|---|
| Model No: AB25S2SA1FA(H) , AB35S2SA1FA(H) , AB50S2SA1FA(H) , AB71S2SA1FA(H) | 240430_UM-IM_COM_1-WAY-CASSETTE-EN-DE.pdf | Click here to download |
| Certification |
|---|
| Model No: AB25S2SA1FA(H) , AB35S2SA1FA(H) , AB50S2SA1FA(H) , AB71S2SA1FA(H) | 240522_HQD EU DoC AC below 12 kW without WIFI.pdf | Click here to download |
