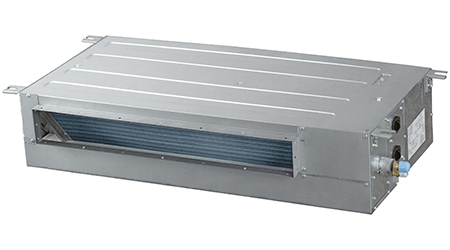

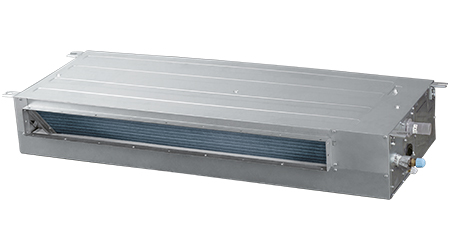

Slim Duct Low Pressure - MRV Indoor
The MRV Slim Duct units, offering silent operations, are ideal for bedrooms, hotel rooms and quiet environments. Extremely thin, the unit is only 185mm high and is still packed with our UVC ray generator to sterilize the air that flows through the unit. The Slim Duct Low Pressure range is designed for free-mount installation without duct, with a standard prevalence of 0 PA.
Condensate Drain Pump
This guarantees a maximum prevalence of 600 mm measured from the base of the machine.
There is the possibility of performing condensate drain by gravity (reversible on both sides).
5 Speed Fan
Works at very high/high/medium/low/very low speeds to give users more choice in airflow control.
Fresh Air
The exchange of air allows the introduction of clean air into the environment. The "Fresh Air" air inlet predisposition introduces fresh air into the room, up to a maximum of 20% of the nominal air flow of the unit.
Compact Design
The unit has a compact design for flexible installation in confined spaces.
UVC Sterilisation
The UVC Sterilisation module help keeping a healthy and clean indoor air. Haier’s UVC generator has received a Certificate of Inactivation on the Novel Coronavirus, from leading Texcell S,A, an independent viral testing laboratory in France.
Silence
A low level of noise ensures peace of mind thanks to the optimised design of the fan, air ducts and motor.
Additional Information
Self-clean function
During operation, dirt accumulates on the evaporator. If the evaporator is not cleaned regularly, accumulated dirt reduces the thermal exchange by 15-30% and also promotes the proliferation of bacteria and mould. Self Clean technology is the first of its kind to integrate the self-cleaning function of both the evaporator and the condenser. It starts with cleaning the evaporator, then switches to cleaning the condenser without stopping the compressor.
Especificaciones Técnicas | Slim Duct Low Pressure - MRV Indoor
Documentación
| Manuales de usuario |
|---|
| Model No: AD242MSERA(H), AD052MSERA(H), AD072MSERA(H), AD092MSERA(H), AD122MSERA(H), AD162MSERA(H), AD182MSERA(H) | 230810_UM-IM_MRV-SLIM_DUCT_LOW_PRESSURE-EN-ES.pdf | Haga clic aquí para descargar |
| Certificación |
|---|
| Model No: AD242MSERA(H), AD052MSERA(H), AD072MSERA(H), AD092MSERA(H), AD122MSERA(H), AD162MSERA(H), AD182MSERA(H) | 240522_HQD EU DoC AC below 12 kW without WIFI.pdf | Haga clic aquí para descargar |
| Model No: AD242MSERA(H), AD052MSERA(H), AD072MSERA(H), AD092MSERA(H), AD122MSERA(H), AD162MSERA(H), AD182MSERA(H) | DC_230213_AC12_EN.pdf | Haga clic aquí para descargar |
