MRV 5 H

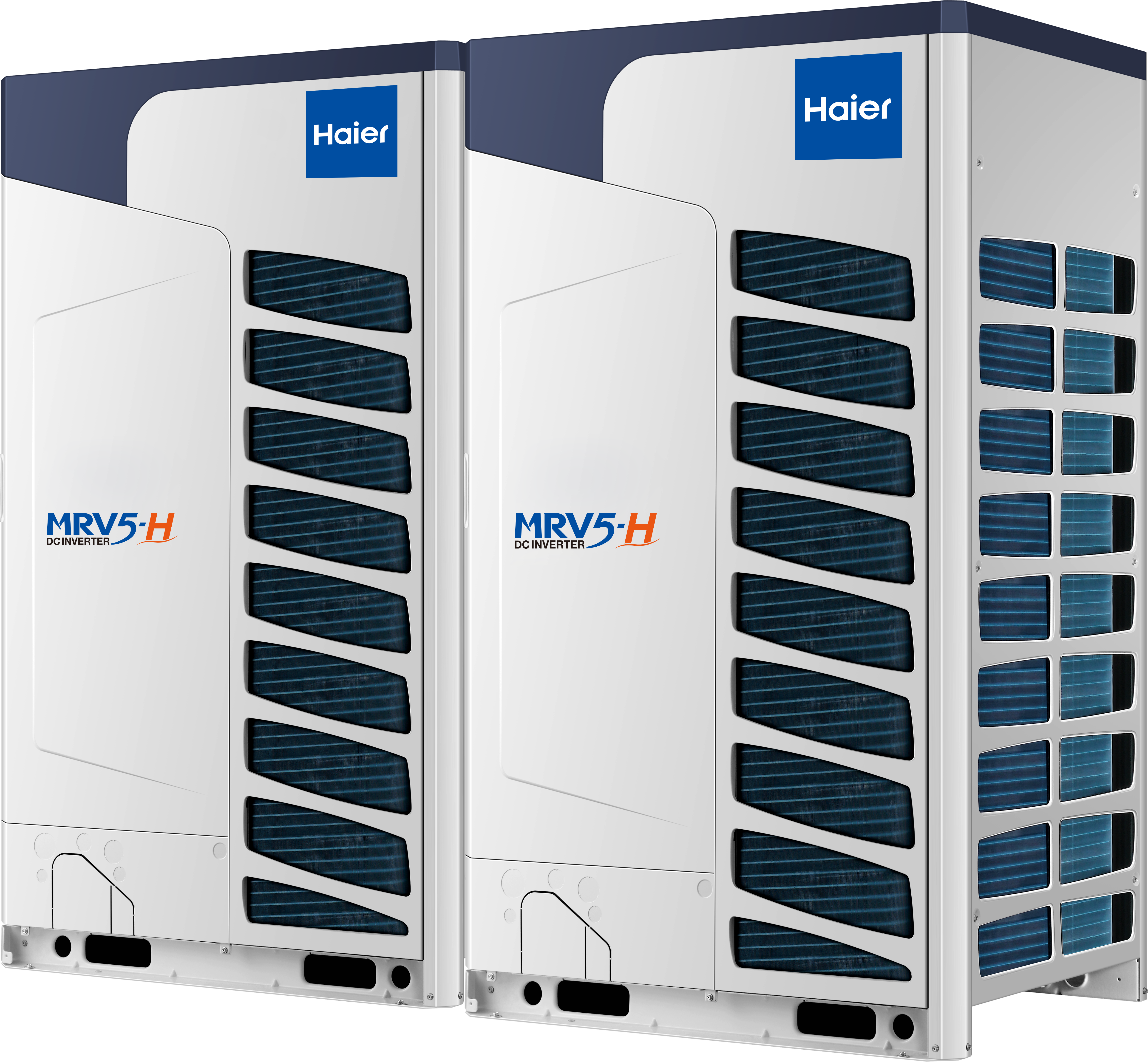

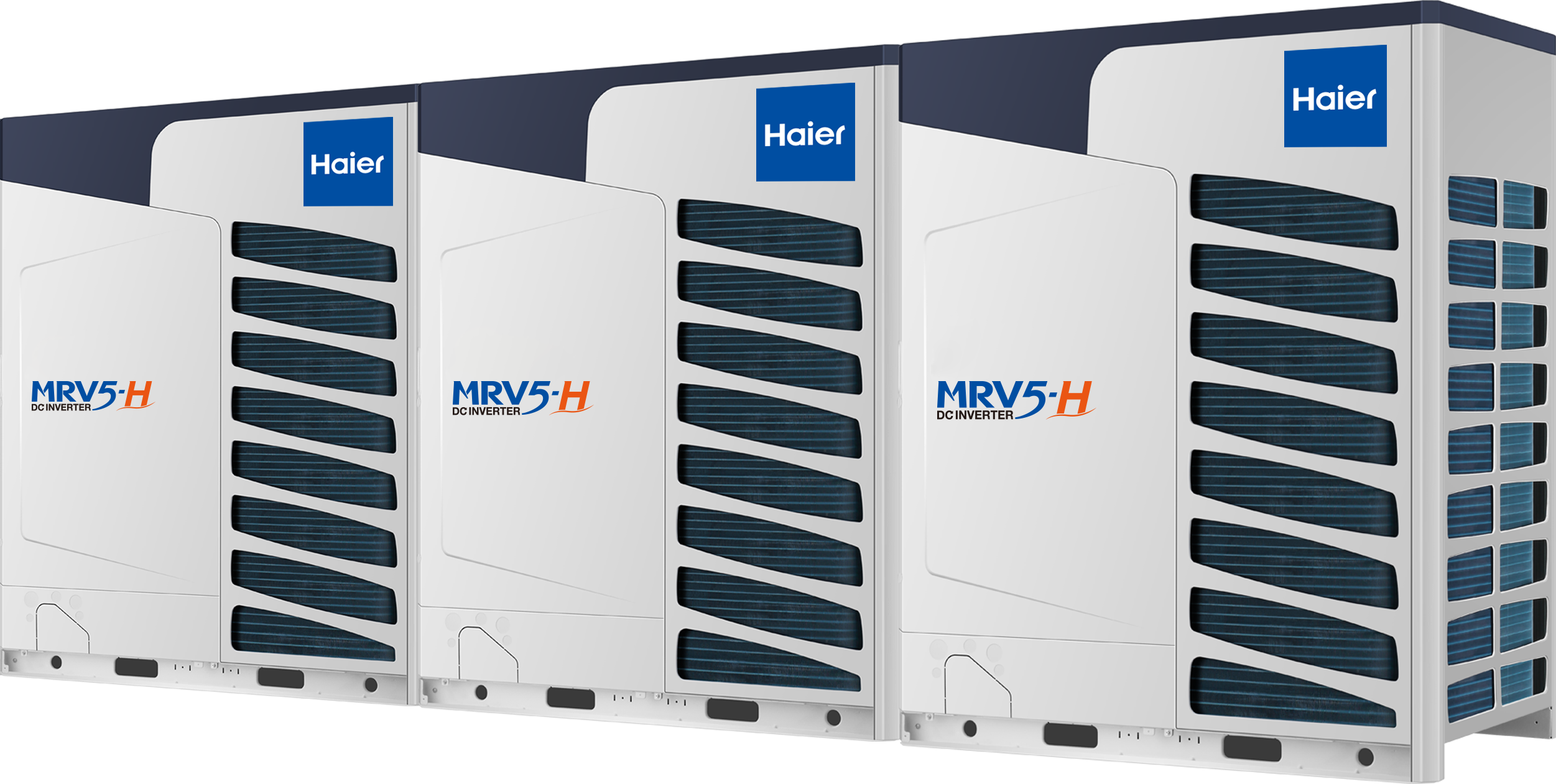

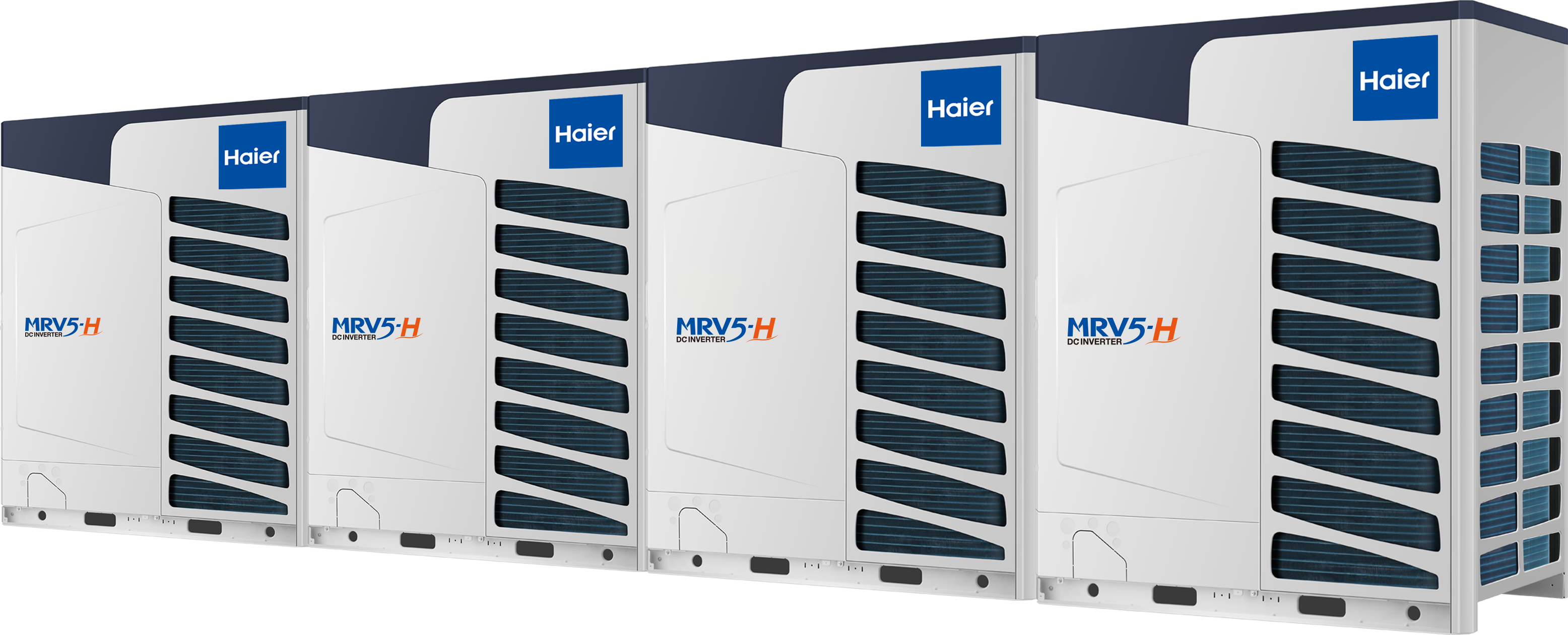

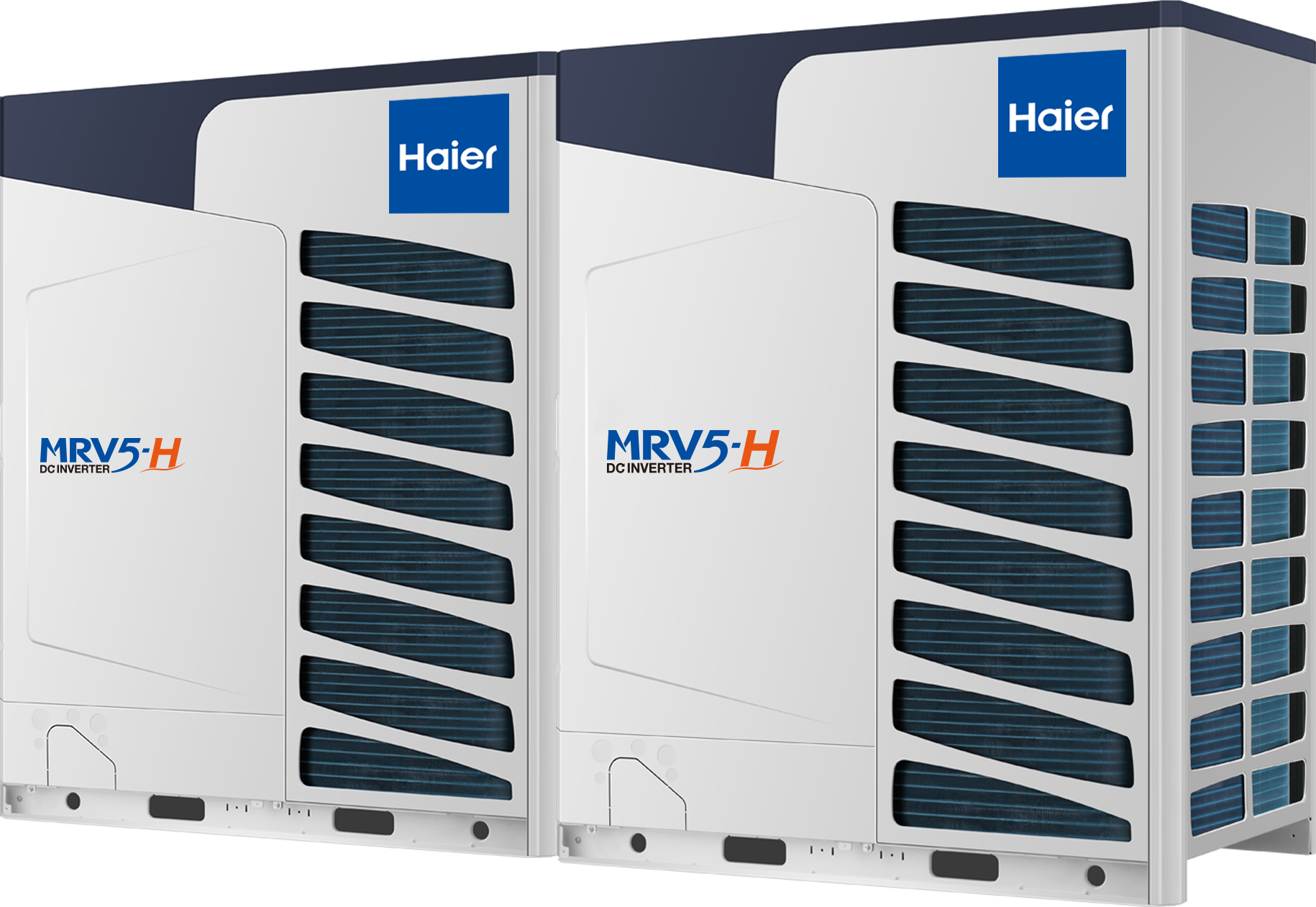

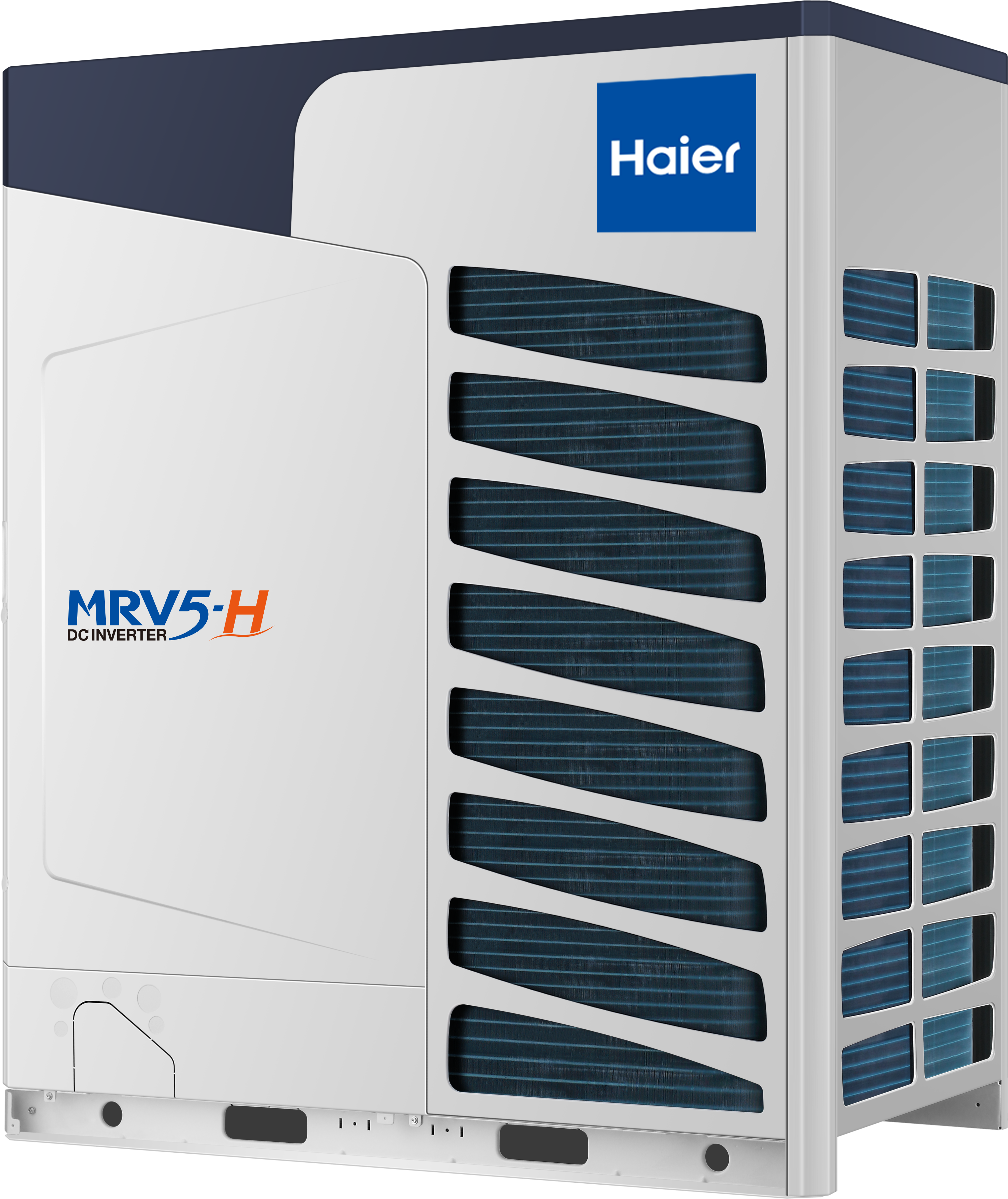

The MRV 5-H Outdoor Unit offers a continuous Heating System, even during Defrost Mode. Indoor temperature fluctuations are reduced by using direct defrosting technology and ensuring that, in certain defrosting modes, the four-way valve does not reverse direction, offering uninterrupted heating temperatures. Highly efficient, the MRV 5-H gives a wide range of power: up to 26 HP with a single module and up to 104 HP by combining up to 4 modules. Modules 8 to 16 HP are equipped with a single fan, for maximum installation flexibility and a small footprint on the surface.

Product Videos

View Specification View Documentation See More

0.5°C Temperature Control

Enjoy a fresh and comfortable airflow thanks to precise temperature control.

Pipe length 1000m

The unit offers a long pipe length that can go up to 1000m, for extra flexibility during installation.

110 Pa

The unit's static pressure is 110 Pa

Range 8 - 104 HP

The power of this MRV unit ranges from 8 - 104 HP.

WiFi Control

The unit can easily be controlled thanks to WiFi.

Silence

A low level of noise ensures peace of mind thanks to the optimised design of the fan, air ducts and motor.

Modbus

The unit integrates the MODBUS RTU communication protocol and can be connected to a third party BMS or BAS directly, without the need for an additional Modbus gateway.

R410a

This unit is running under refrigerant R410a.

Smart Link

New unique Wi-Fi wireless communication system between outdoor and indoor units (optional)

Additional Information

Smart Control thanks to SMARTLINK” Wi-Fi Features

As an alternative to the classic digital communication cable, which is required to make all indoor units talk to their outdoor units, you can install these wireless radio accessories with ZigBee technology on each indoor and outdoor unit.

At the time of activation, the indoor units begin to dialog with each other creating a stable network of coded signals that bounce between the various internal units until they reach the outdoor unit and vice versa. Each indoor unit works as a signal repeater. With this system, communication is guaranteed even to the most distant indoor unit, and in the presence of walls or other obstacles.

When an indoor unit is in maintenance, the signal of the unit is lost, this does not affect the normal functioning of the  other units.

The system is set up by the Haier service centres in the start-up phase through a special application (APP) that can be installed on smartphones or tablets (it does not require access to the Internet, as it works on a local WIFI network
