> Ducted Medium Pressure - Monosplit
Ducted Medium Pressure - Monosplit

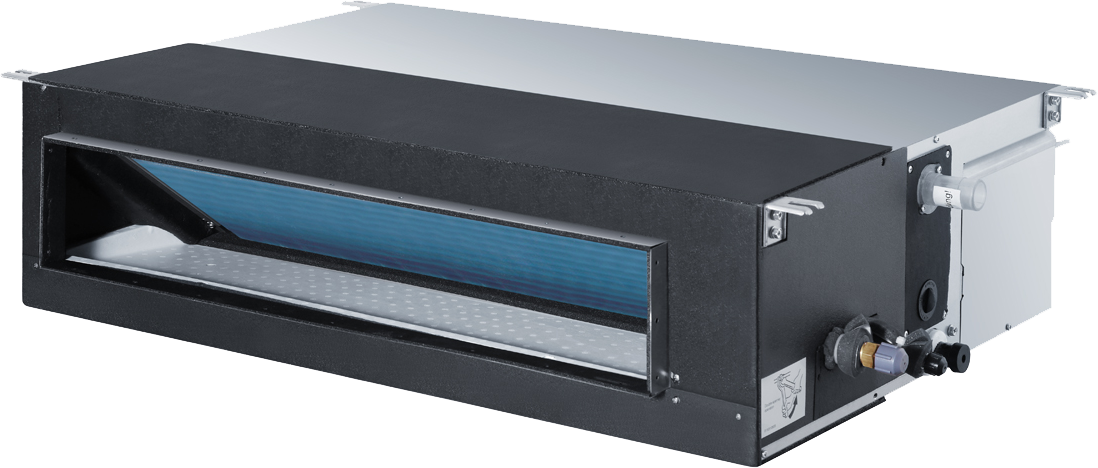

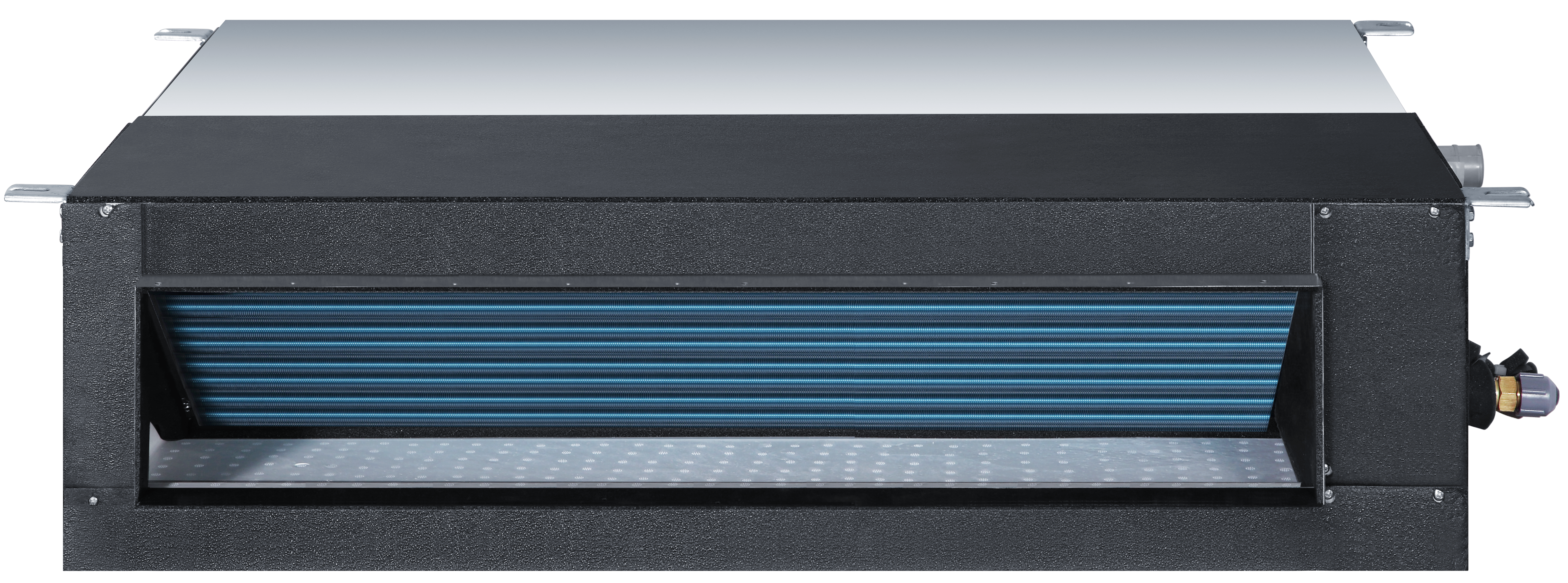

The Ducted Medium Pressure units, available in 3.5kW, 5.0kW and 7.1kW, are designed to be as flexible as possible to offer multiple installation solutions.
Equipped with premium features such as the UVC Sterilisation module and the hOn Wi-Fi control, the Ducted Medium Pressure allows combining smart and comfortable air. The medium-pressure ducted units include a condensate drain pump as standard. This guarantees a maximum prevalence of 600 mm measured from the base of the machine. There is the possibility of performing a condensate drain by gravity (reversible on both sides).
3D Air Flow
The 3D air flow offers a better distribution of the air inside the room, thanks to the synchronised movement of the horizontal and vertical deflectors.
Condensate Drain Pump
This guarantees a maximum prevalence of 600 mm measured from the base of the machine.
There is the possibility of performing condensate drain by gravity (reversible on both sides).
On/Off Card
Our unique key card management system reduces energy costs without compromising guests' comfort. When entering or leaving a hotel room, the smart key cards automatically communicate with the unit to turn off the air conditioning or heating.
hOn WiFi
The hOn app enables to take control of all the Haier appliances in your Smart Home from your smartphone or tablet. The app allows the management of all the basic functions, respond to voice commands because it is compatible with vocal assistants, and more.
Easy Installation
A simplified installation procedure allows the installer to work more efficiently, enabling quicker installation and greater customer service, especially during the peak season.
UVC Sterilisation
The UVC Sterilisation module help keeping a healthy and clean indoor air. Haier’s UVC generator has received a Certificate of Inactivation on the Novel Coronavirus, from leading Texcell S,A, an independent viral testing laboratory in France.
Silence 26 dB(A)
A low level of noise ensures peace of mind thanks to the optimised design of the fan, air ducts and
motor.
Additional Information
Smart and Comfortable air
Thanks to its multiple functionalities, the Ducted Medium Pressure unit is designed to match as many applications as possible to provide Smart and Comfortable air at any time.

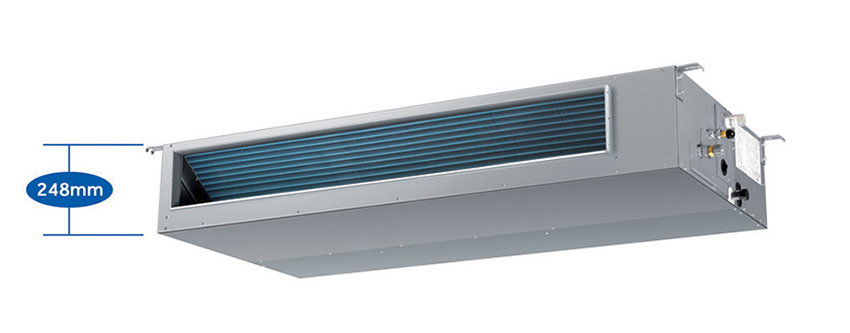

The compact design of the range (with thickness of 248mm) ease the installation and allows high adaption to any situation. Furthermore, the connection of electrical cables is now possible through only one screw. The ducted unit have then two options for connecting the air extraction channel:
![Canalised aspiration](/sites/default/files/inline-images/Canalizzato%20aspirazione.jpg)
Wi-Fi
Besides normal wired/infrared control, Haier supplies Smart Control from hOn APP. Including the on/off. Operation mode selection, fan speed temperature, and air flow adjustment, schedule, UV function and steri-clean 56OC, etc, you can manage the unit at any time and from any smart device.
Being able to manage your Ducted Medium Pressure units from a distance means that you can easily switch from one program to another, and make sure the right airflow is provided to each area.
Technical Specifications | Ducted Medium Pressure - Monosplit
Documentation
User Manuals |
---|
Model No: AD35S2SM3FA(H), AD50S2SM3FA(H), AD71S2SM3FA(H), AD125S2SM8FA(H), AD140S2SM8FA(H), AD160S2SM3FA(H) | 230807_UM-IM_COM_DUCTED_MEDIUM_PRESSURE-125-140-160-EN-MULTI.pdf | Click here to download |
Model No: AD35S2SM3FA(H), AD50S2SM3FA(H), AD71S2SM3FA(H), AD125S2SM8FA(H), AD140S2SM8FA(H), AD160S2SM3FA(H) | 230807_UM-IM_COM_DUCTED_MEDIUM_PRESSURE-35-50-71-EN-MULTI.pdf | Click here to download |
Certification |
---|
Model No: AD35S2SM3FA(H), AD50S2SM3FA(H), AD71S2SM3FA(H), AD125S2SM8FA(H), AD140S2SM8FA(H), AD160S2SM3FA(H) | 240522_HQD EU DoC AC below 12 kW without WIFI.pdf | Click here to download |
Model No: AD35S2SM3FA(H), AD50S2SM3FA(H), AD71S2SM3FA(H), AD125S2SM8FA(H), AD140S2SM8FA(H), AD160S2SM3FA(H) | DC_ACWI_230213EN.pdf | Click here to download |
Model No: AD35S2SM3FA(H), AD50S2SM3FA(H), AD71S2SM3FA(H), AD125S2SM8FA(H), AD140S2SM8FA(H), AD160S2SM3FA(H) | DC_ACWI12_230213EN.pdf | Click here to download |
Energy Labels |
---|
Model No: AD35S2SM3FA(H), AD50S2SM3FA(H), AD71S2SM3FA(H), AD125S2SM8FA(H), AD140S2SM8FA(H), AD160S2SM3FA(H) | ErP_AD160S2SM3FA(H)_1U160S2SP1FB.pdf | Click here to download |
Model No: AD35S2SM3FA(H), AD50S2SM3FA(H), AD71S2SM3FA(H), AD125S2SM8FA(H), AD140S2SM8FA(H), AD160S2SM3FA(H) | ErP_AD50S2SM3FA(H)_1U50S2SJ2FA-2.pdf | Click here to download |
Model No: AD35S2SM3FA(H), AD50S2SM3FA(H), AD71S2SM3FA(H), AD125S2SM8FA(H), AD140S2SM8FA(H), AD160S2SM3FA(H) | ErP_AD71S2SM3FA(H)_1U71S2SR2FA.pdf | Click here to download |
