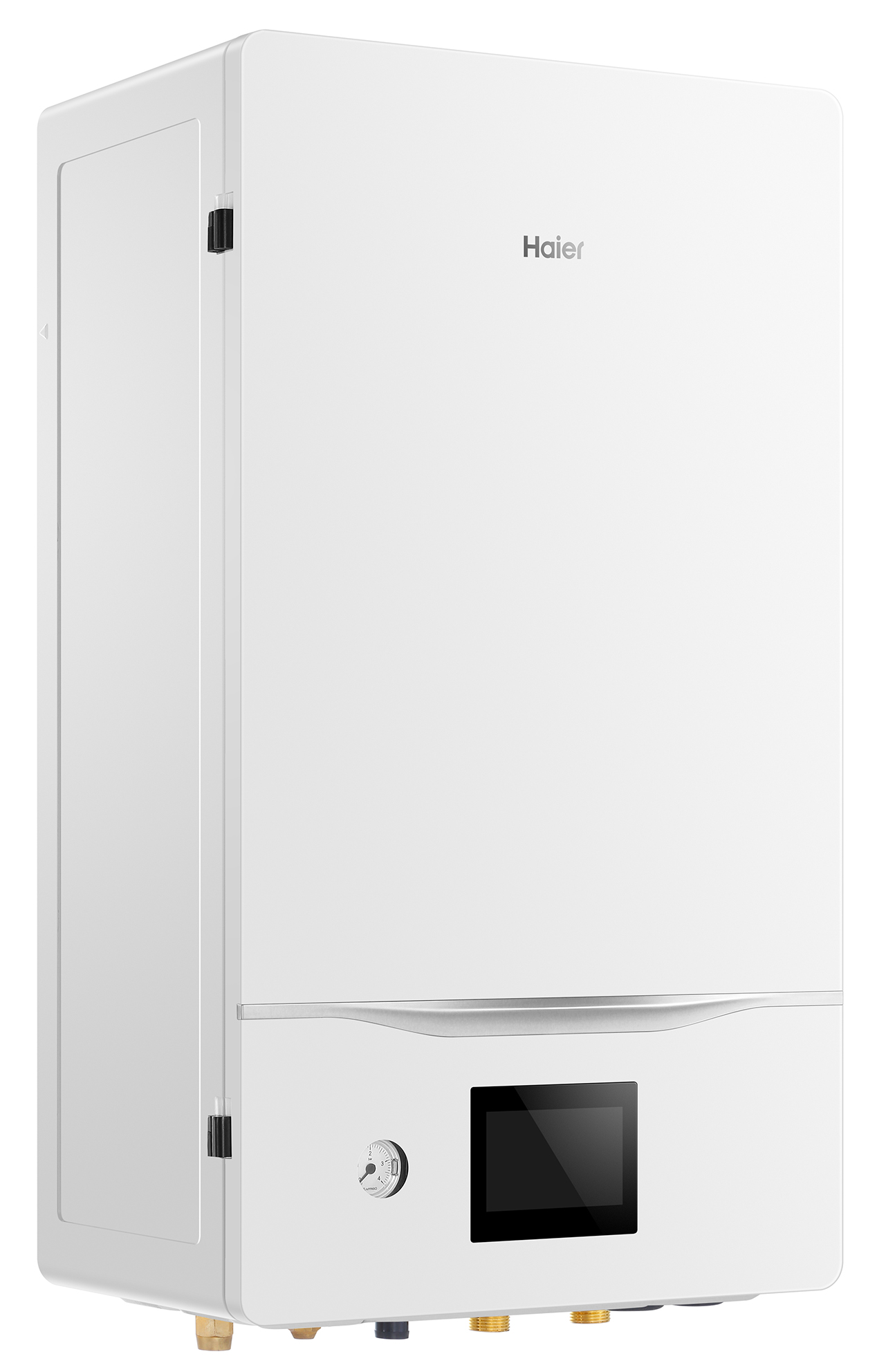

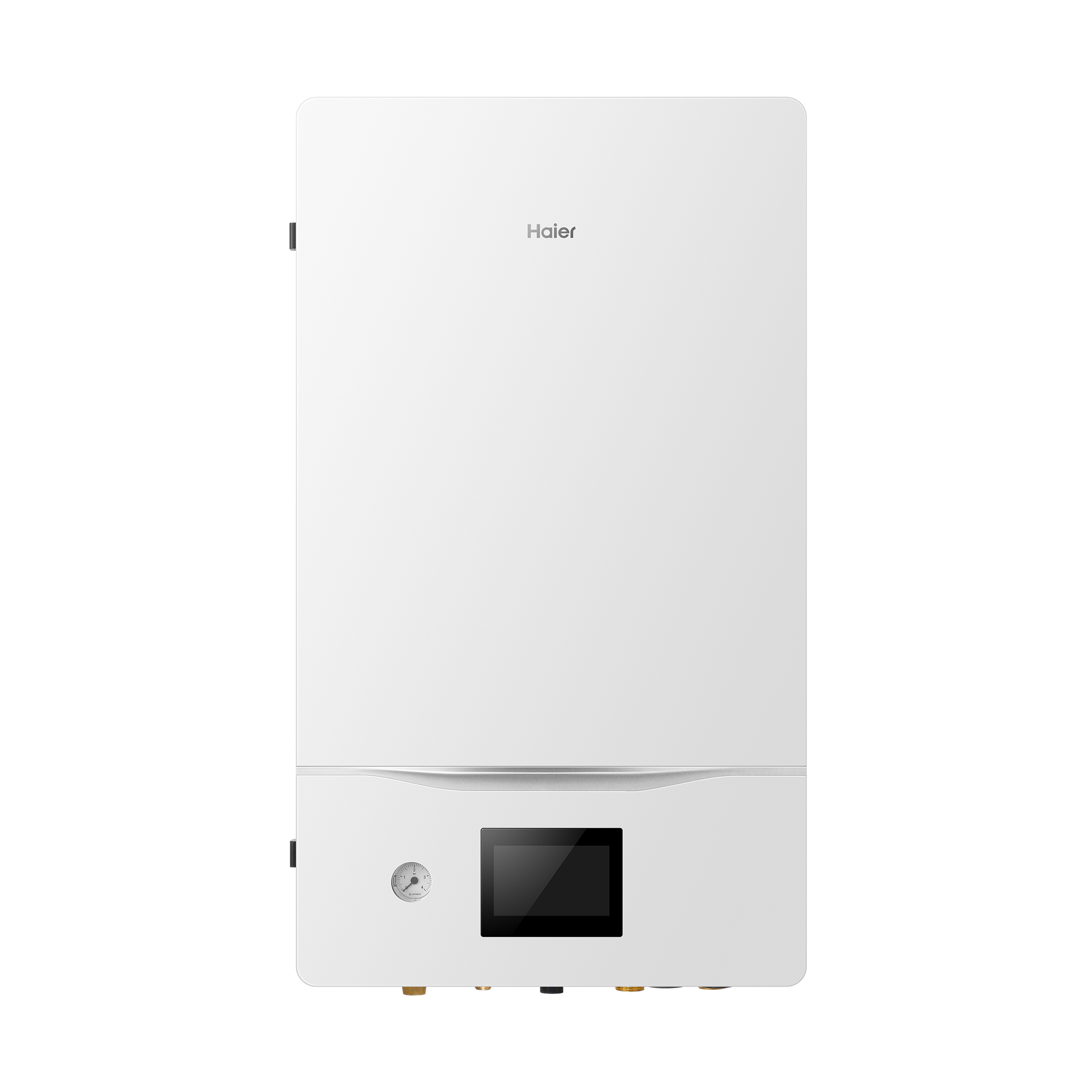

R32 - Split HE - A2W
The Haier Split HE range is set to be an environmentally friendly alternative to conventional oil and gas boilers. Using the outside air to create free renewable energy and providing A+++ energy efficiency, it offers Ultimate Comfort. The Air-To-Water Split unit substantially reduces energy consumption, running costs and CO2 emissions in heating. The application and use of a Split System allows greater flexibility in the location of the outdoor unit due to the longer pipe lengths available on the smaller-diameter pipes.
The range is available in 4,0kW, 6,0kW, 8,0kW and 10,0kW sizes.
2-Zone Control
When there are different room temperature requirements, two zone temperature control through separate heating or cooling circuits is possible. Adjust and maintain two different water temperatures to achieve intelligent control and saving energy.
A+++
The unit offers a high energy-efficiency level, allowing a lower consumption when in use.
Anti-Freezing
The Heat pump will auto heat to 15°C when the ambient temperature reaches below 2°C and the water temperature is below 7°C.
Pool Heating
Provides control to manage the temperature of the pool water.
Climate Curve
Both heating and cooling water temperatures are optimally configured when considering outdoor temperature, both in comfort and efficiency terms. The Climate curve configuration allows the system to adapt to outdoor temperature fluctuation with different temperature profiles tailored for each user’s preferences.
DHW Solar Tank Thermal Control
The feature allows the control of the solar thermal functions of the tank, for heating domestic hot water.
Smart Grid
Based on the signal from the power grid company, the outdoor unit will automatically adjust the capacity output.
Additional Information
Modern energy companies integrate in their power grids Smart Grid functions. This system sends a signal to all the connected devices that carries information on the energy cost real time. Equipment compatible with this feature can then adjust their behavior to optimise savings.
Technical Specifications | R32 - Split HE - A2W
Documentation
| User Manuals |
|---|
| Model No: AW042SSCHA, AW062SSCHA, AW082SNCHA, AW102SNCHA, HU062WAMNA, HU102WAMNA | 240319_UM_HEA-DHW_WIFI_A2W-EN-CZ.pdf | Click here to download |
| Certification |
|---|
| Model No: AW042SSCHA, AW062SSCHA, AW082SNCHA, AW102SNCHA, HU062WAMNA, HU102WAMNA | DC_A2W_Super_Aqua-S_231012.pdf | Click here to download |
| Model No: AW042SSCHA, AW062SSCHA, AW082SNCHA, AW102SNCHA, HU062WAMNA, HU102WAMNA | DC_ATW_230123EN.pdf | Click here to download |
| Certifications |
|---|
| Model No: AW042SSCHA, AW062SSCHA, AW082SNCHA, AW102SNCHA, HU062WAMNA, HU102WAMNA | Cert 041-K073-05_Keymark_AW042SSCHA_HU062WAMNA_AW062SSCHA_HU062WAMNA.pdf | Click here to download |
| Model No: AW042SSCHA, AW062SSCHA, AW082SNCHA, AW102SNCHA, HU062WAMNA, HU102WAMNA | Cert 041-K073-06_Keymark_AW082SNCHA_HU102WAMNA_AW102SNCHA_HU102WAMNA.pdf | Click here to download |
| Energy Labels |
|---|
| Model No: AW042SSCHA, AW062SSCHA, AW082SNCHA, AW102SNCHA, HU062WAMNA, HU102WAMNA | ErP_Super-Aqua-S10_HU102WAMNA_AW102SNCHA.pdf | Click here to download |
| Model No: AW042SSCHA, AW062SSCHA, AW082SNCHA, AW102SNCHA, HU062WAMNA, HU102WAMNA | ErP_Super-Aqua-S4_HU062WAMNA_AW042SSCHA.pdf | Click here to download |
| Model No: AW042SSCHA, AW062SSCHA, AW082SNCHA, AW102SNCHA, HU062WAMNA, HU102WAMNA | ErP_Super-Aqua-S6_HU062WAMNA_AW062SSCHA.pdf | Click here to download |
| Model No: AW042SSCHA, AW062SSCHA, AW082SNCHA, AW102SNCHA, HU062WAMNA, HU102WAMNA | ErP_Super-Aqua-S8_HU102WAMNA_AW082SNCHA.pdf | Click here to download |
