R290 - All-In-One - A2W

Introducing the new R290 Hydro All-In-One, powered by R290 refrigerant for eco-friendly operation. The All-In-One unit is available in 4kW, 6kW, 8kW, 10kW, 12kW, 14kW and 16kW sizes, to cover all your needs and adapt to as many applications as possible.

Offering outstanding performances, the new All in One has a Wide Operating Range: the All-In-One is able to run normal operations even at -28°C. Its compact size makes its installation easy and quick.

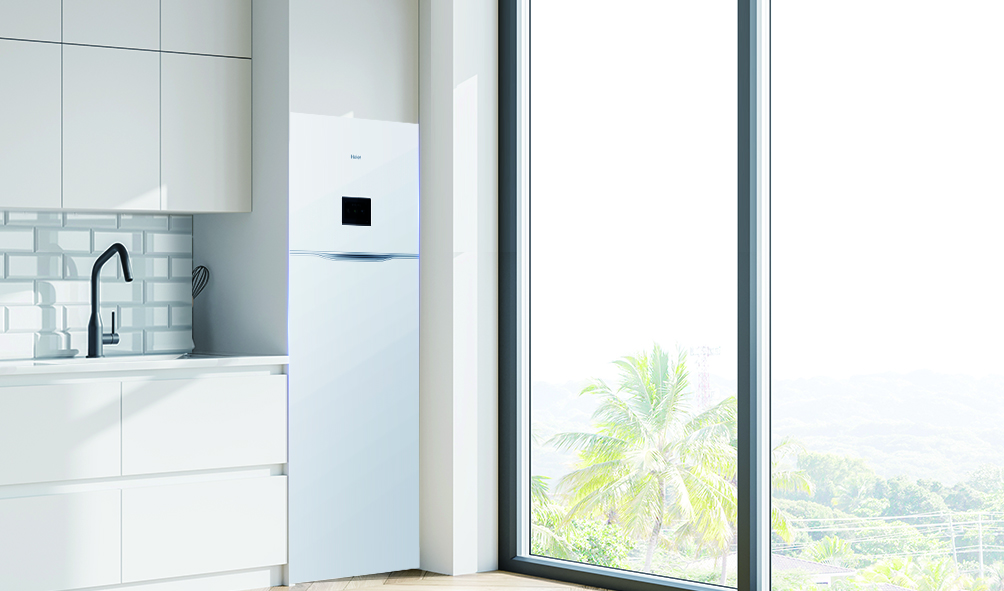

The elegant indoor tank comes in two different versions: 160L and 240L.

Product Videos

View Specification View Documentation See More

2-Zone Control

When there are different room temperature requirements, two zone temperature control through separate heating or cooling circuits is possible. Adjust and maintain two different water temperatures to achieve intelligent control and saving energy.

A+++

The unit offers a high energy-efficiency level, allowing a lower consumption when in use.

Anti-Freezing

The Heat pump will auto heat to 15°C when the ambient temperature reaches below 2°C and the water temperature is below 7°C.

Auto Mode

Automatically adjust the cooling or heating function of the air conditioner based on the desired temperature and room temperature.

Pool Heating

Provides control to manage the temperature of the pool water.

Climate Curve

Both heating and cooling water temperatures are optimally configured when considering outdoor temperature, both in comfort and efficiency terms. The Climate curve configuration allows the system to adapt to outdoor temperature fluctuation with different temperature profiles tailored for each user’s preferences.

DHW Solar Tank Thermal Control

The feature allows the control of the solar thermal functions of the tank, for heating domestic hot water.

Max 80°C Hot Water

High leaving water temperature of 80°C (R290) is guaranteed without using a backup heater when the outdoor temperature is higher than -15°C.

Smart Grid

Based on the signal from the power grid company, the outdoor unit will automatically adjust the capacity output.

R290

R290 with zero Ozone Depletion Potential and Low Global Warming Potential is Eco & Ozone-friendly, which reduces the harmful effects of the planet.

Additional Information

Ultimate Comfort

Both heating and cooling water temperatures are optimally set when the outside temperature is considered, both in terms of comfort and efficiency. The climate curve configuration allows the system to adapt to this fluctuation in outdoor temperature with different temperature profiles adapted to the preferences of each user.

Technical Specifications | R290 - All-In-One - A2W

Hydro All-In-One - Heating - ENG View PDF

Documentation

Energy Labels
Model No: HU102F20AHYA, AW042HUGHA, HU102F20AHYA, AW062HUGHA, HU102F20AHYA, AW082HUGHA, HU102F20AHYA, AW102HUGHA, HU102F20AHYAE3, AW10NHUGHA, HU162F20AHYA, AW122HVGHA, HU162F20AHYA, AW142HVGHA, HU162F20AHYA, AW162HVGHA, HU162F20AHYAE3, AW12NHVGHA, HU162F20AHYAE3, AW14NHVGHA, HU162F20AHYAE3, AW16NHVGHAErP_AW042HUGHA_HU102F20AHYA.pdf Click here to download
