4-Way Cassette Compact - MRV Indoor

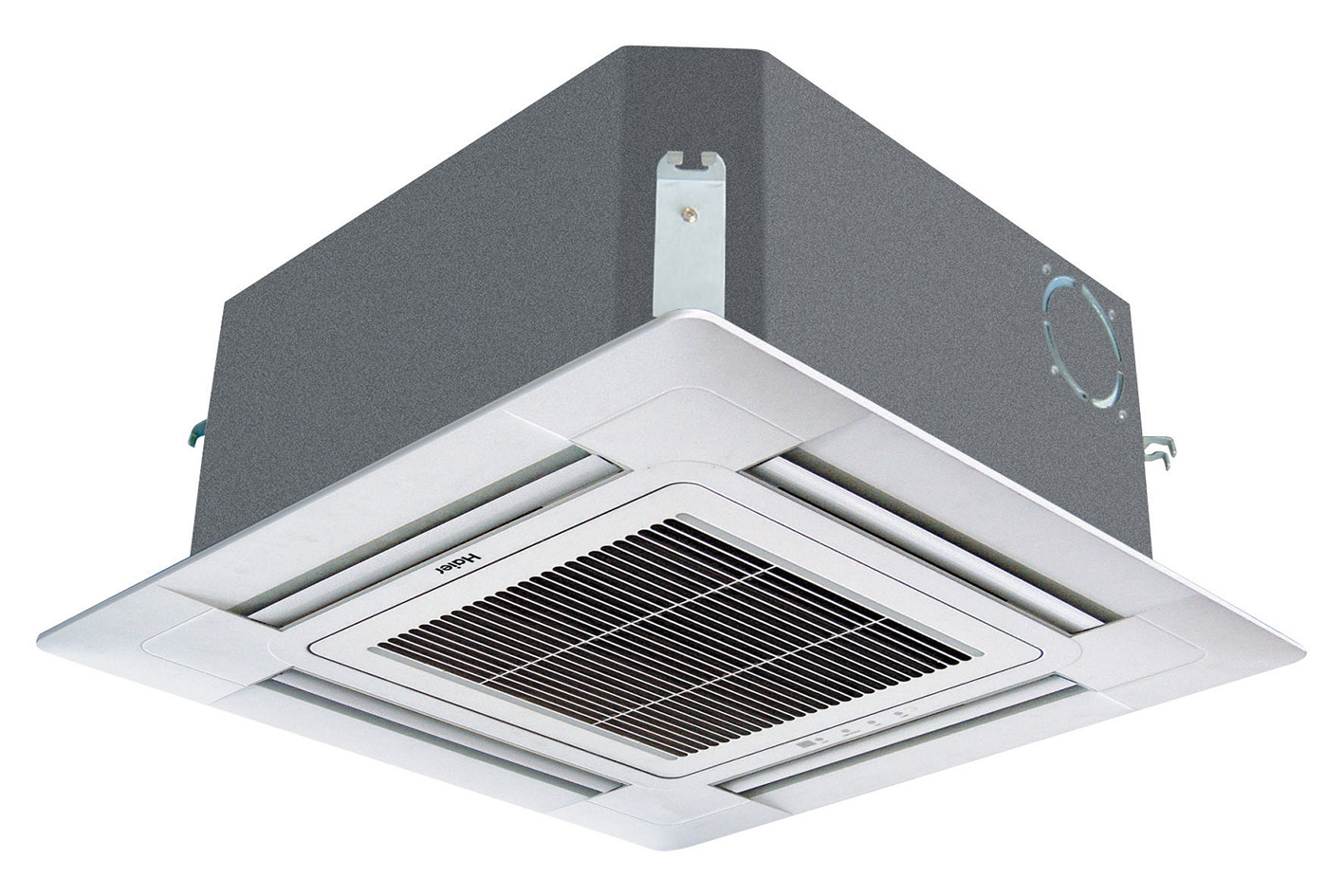

The Haier 4-Way Cassette Compact, coming with a square panel design of max 620x620 for maximum compatibility with module ceilings, is available in 6 different sizes. Truly flexible, the 4 vanes can be controlled independently, each allowing the use of 6 levels of positioning. Equipped with the Anti-Bacterial filter, and a standard condesate drain pump, it will help to keep the indoor air as Clean as possible

Product Videos

View Specification View Documentation See More

4 Way Air Flow

The louvre design distributes air leaving a space between the chassis and the ceiling allowing far and wide airflow distribution.

Condensate Drain Pump

This guarantees a maximum prevalence of 600 mm measured from the base of the machine.
There is the possibility of performing condensate drain by gravity (reversible on both sides).

5 Speed Fan

Works at very high/high/medium/low/very low speeds to give users more choice in airflow control.

Fresh Air

The exchange of air allows the introduction of clean air into the environment. The "Fresh Air" air inlet predisposition introduces fresh air into the room, up to a maximum of 20% of the nominal air flow of the unit.

Additional Information

Technical Specifications | 4-Way Cassette Compact - MRV Indoor

4-Way Cassette Compact - MRV - ENG View PDF

Documentation

User Manuals
Model No: AB052MCERA(M), AB072MCERA(M), AB092MCERA(M), AB122MCERA(M), AB162MCERA(M), AB182MCERA(M)241011_UM-IM_MRV_4-WAY_CASSETTE_COMPACT-EN-ML.pdf Click here to download
Certification
Model No: AB052MCERA(M), AB072MCERA(M), AB092MCERA(M), AB122MCERA(M), AB162MCERA(M), AB182MCERA(M)240522_HQD EU DoC AC below 12 kW without WIFI.pdf Click here to download
Model No: AB052MCERA(M), AB072MCERA(M), AB092MCERA(M), AB122MCERA(M), AB162MCERA(M), AB182MCERA(M)DC_230213_AC12_EN.pdf Click here to download
Installation Manuals
Click here to verify yourself.
Engineering files
