R290 - Hydro Split - A2W

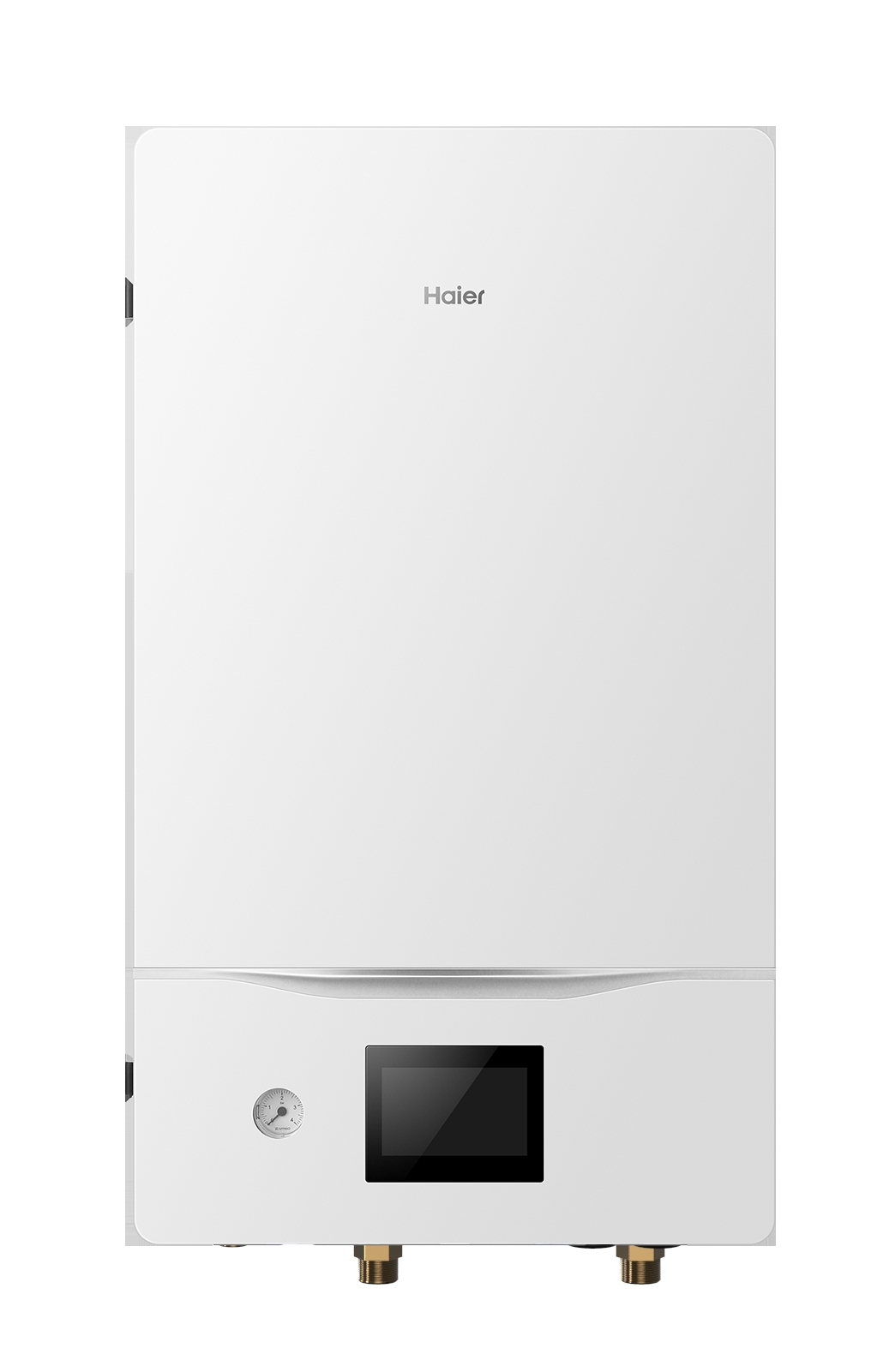

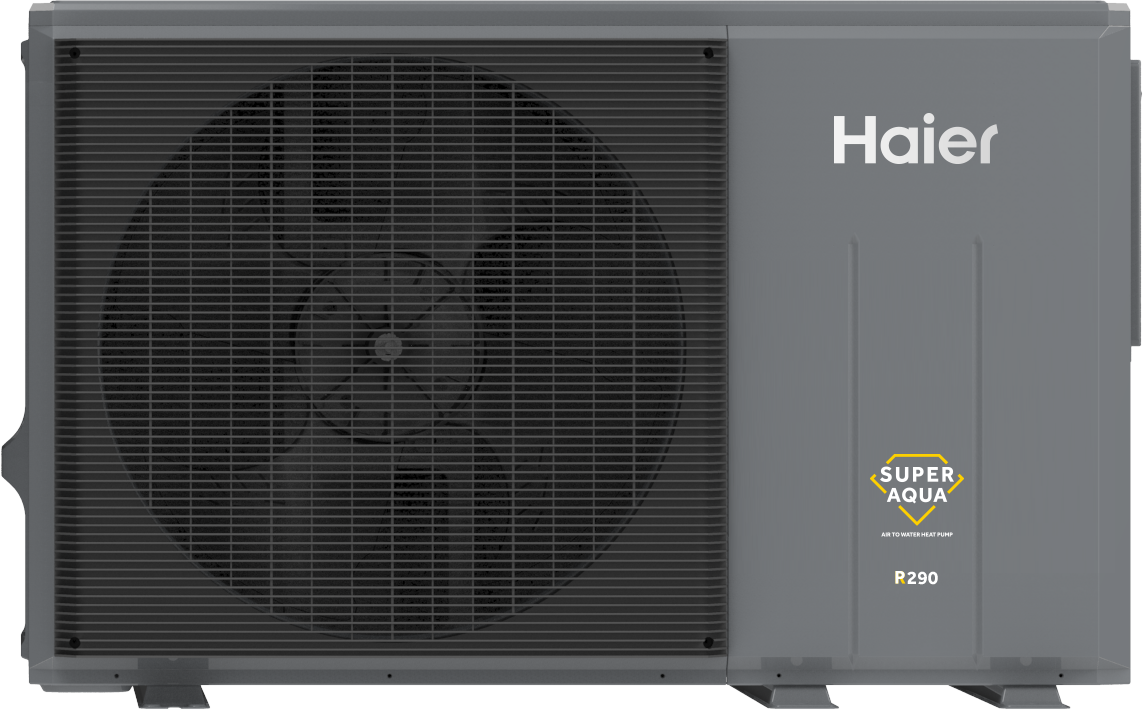

Discover the new generation of Air-to-Water Hydro Split Heat Pump, powered by R290 refrigerant. Covering a wide range of applications, the new Hydro Split Heat Pump is available in 4kW, 6kW, 8kW, 10kW, 12kW, 14kW and 16kW sizes.

With market leading A+++/A+++ performances, the new Hydro Split Heat Pump offers a very wide Operating Range, with the ability to run normally even at -28°C.

Product Videos

View Specification View Documentation See More

2-Zone Control

When there are different room temperature requirements, two zone temperature control through separate heating or cooling circuits is possible. Adjust and maintain two different water temperatures to achieve intelligent control and saving energy.

A+++

The unit offers a high energy-efficiency level, allowing a lower consumption when in use.

Anti-Freezing

The Heat pump will auto heat to 15°C when the ambient temperature reaches below 2°C and the water temperature is below 7°C.

Auto Mode

Automatically adjust the cooling or heating function of the air conditioner based on the desired temperature and room temperature.

Pool Heating

Provides control to manage the temperature of the pool water.

Climate Curve

Both heating and cooling water temperatures are optimally configured when considering outdoor temperature, both in comfort and efficiency terms. The Climate curve configuration allows the system to adapt to outdoor temperature fluctuation with different temperature profiles tailored for each user’s preferences.

DHW Solar Tank Thermal Control

The feature allows the control of the solar thermal functions of the tank, for heating domestic hot water.

Max 80°C Hot Water

High leaving water temperature of 80°C (R290) is guaranteed without using a backup heater when the outdoor temperature is higher than -15°C.

Smart Grid

Based on the signal from the power grid company, the outdoor unit will automatically adjust the capacity output.

hOn WiFi

The hOn app enables to take control of all the Haier appliances in your Smart Home from your smartphone or tablet. The app allows the management of all the basic functions, respond to voice commands because it is compatible with vocal assistants, and more.

R290

R290 with zero Ozone Depletion Potential and Low Global Warming Potential is Eco & Ozone-friendly, which reduces the harmful effects of the planet.

Additional Information

The Haier Air to Water Heat Pump range uses free renewable energy from the outside air as a heat source for space heating and providing domestic hot water. This energy efficient and environmentally friendly solution substantially reduces energy consumption, running cost and CO₂ emissions in heating compared to conventional oil and gas boilers.

Technical Specifications | R290 - Hydro Split - A2W

Hydro Split - Heating - ENG View PDF

Documentation

Certification
Model No: HU102WAHYA, HU10NWAHYAE3, HU162WAHYA, HU16NWAHYAE3, AW042HUGHA, AW062HUGHA, AW082HUGHA, AW102HUGHA, AW10NHUGHA, AW122HVGHA, AW142HVGHA, AW162HVGHA, AW12NHVGHA, AW14NHVGHA, AW16NHVGHA241016_DC_ATW_Gen2_Gen3.pdf Click here to download
