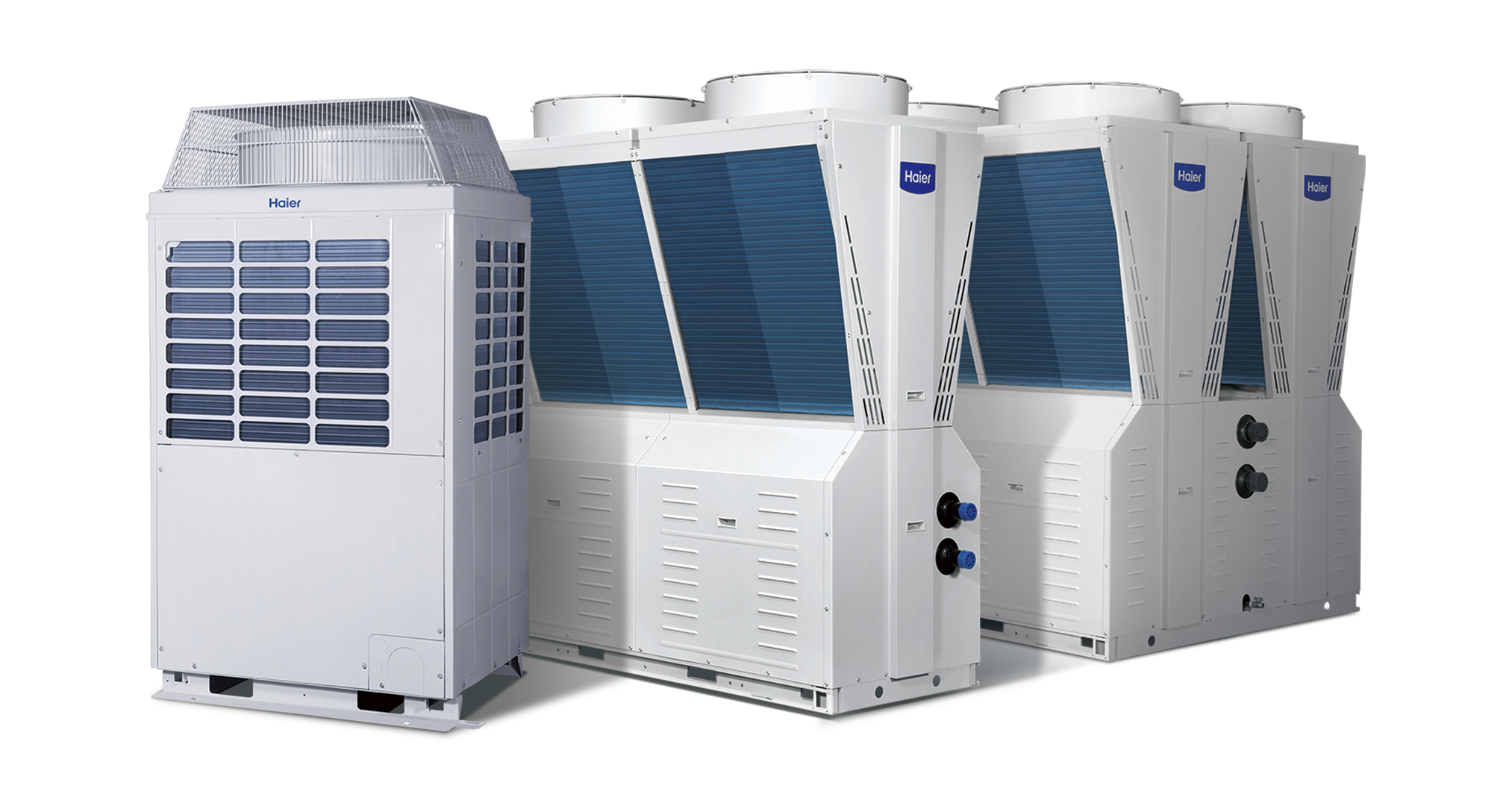

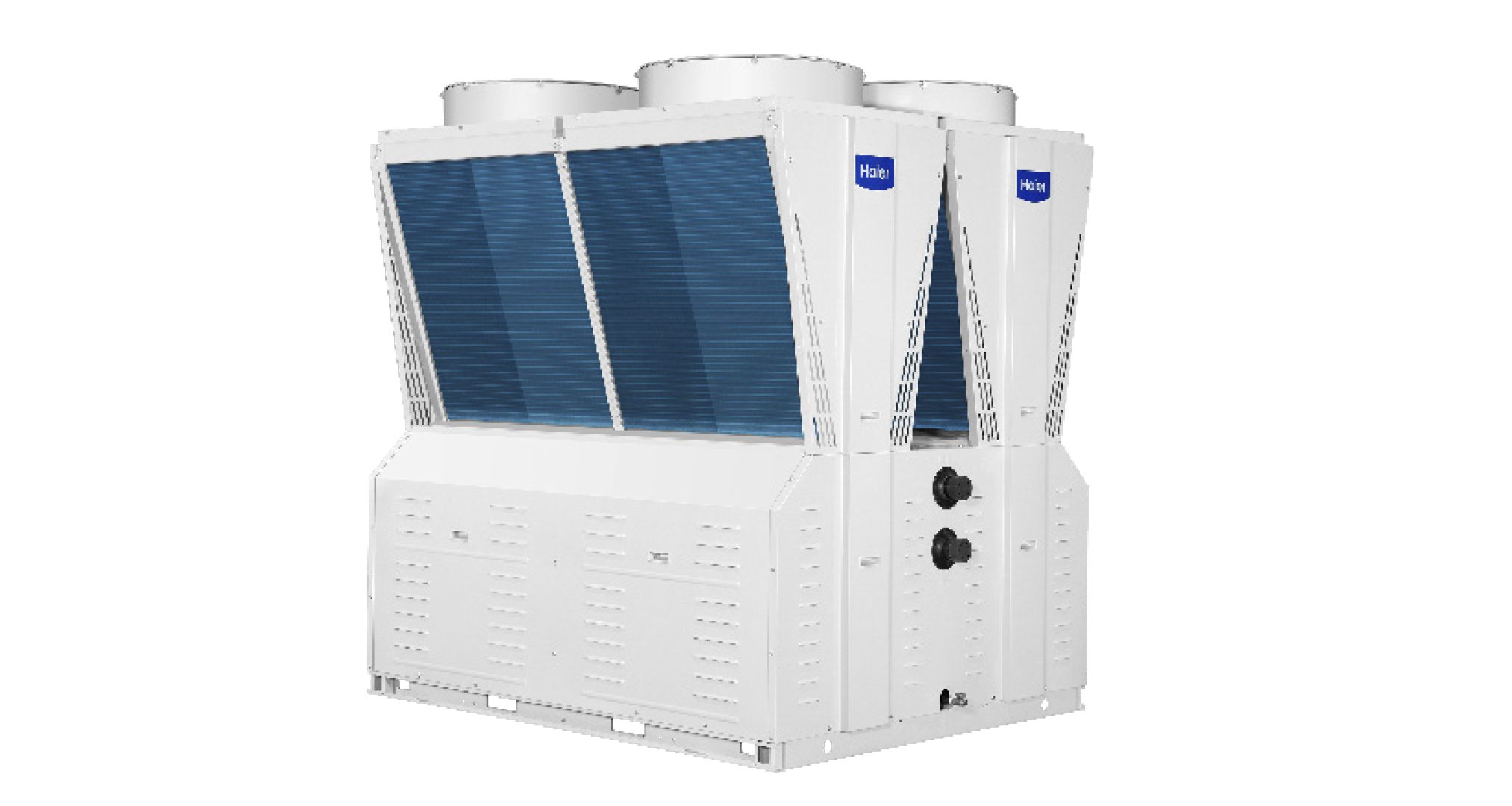

Modular Chiller
The Modular Chiller system consists of 4 modules of different power heat pumps equipped with compressors in "multi-scroll" technology. These modules are planned and designed for single "plug-in" installations and for multiple modular configurations.
Up to 16 modules of similar or different capacity can be coupled under a single controller in order to reach 2080 KW of capacity. The simplicity of the construction and rational configuration with the various pre-installed protections make these models reliable and economical to manage.
Haier Modular Chiller works with R410A.
Easy Installation
A simplified installation procedure allows the installer to work more efficiently, enabling quicker installation and greater customer service, especially during the peak season.
Flexible Installation
Thanks to its smart design, the unit can be installed in many different ways and in various area.
Technical Specifications | Modular Chiller
Documentation
| User Manuals |
|---|
| Model No: CA0035EANE, CA0070EANE, CA0100EANE, CA0130EANE | 230717_UM-IM_CHI_MODULAR_CHILLER_FIXED-EANE-EN.pdf | Click here to download |
| Certification |
|---|
| Model No: CA0035EANE, CA0070EANE, CA0100EANE, CA0130EANE | 240919_DC_Chillers_HQD EU DoC AC over 12 kW without WIFI.pdf | Click here to download |
| Energy Labels |
|---|
| Model No: CA0035EANE, CA0070EANE, CA0100EANE, CA0130EANE | ErP_CA0035EANE.pdf | Click here to download |
| Model No: CA0035EANE, CA0070EANE, CA0100EANE, CA0130EANE | ErP_CA0070EANE.pdf | Click here to download |
| Model No: CA0035EANE, CA0070EANE, CA0100EANE, CA0130EANE | PF_CA0100EANE.pdf | Click here to download |
| Model No: CA0035EANE, CA0070EANE, CA0100EANE, CA0130EANE | PF_CA0130EANE.pdf | Click here to download |
