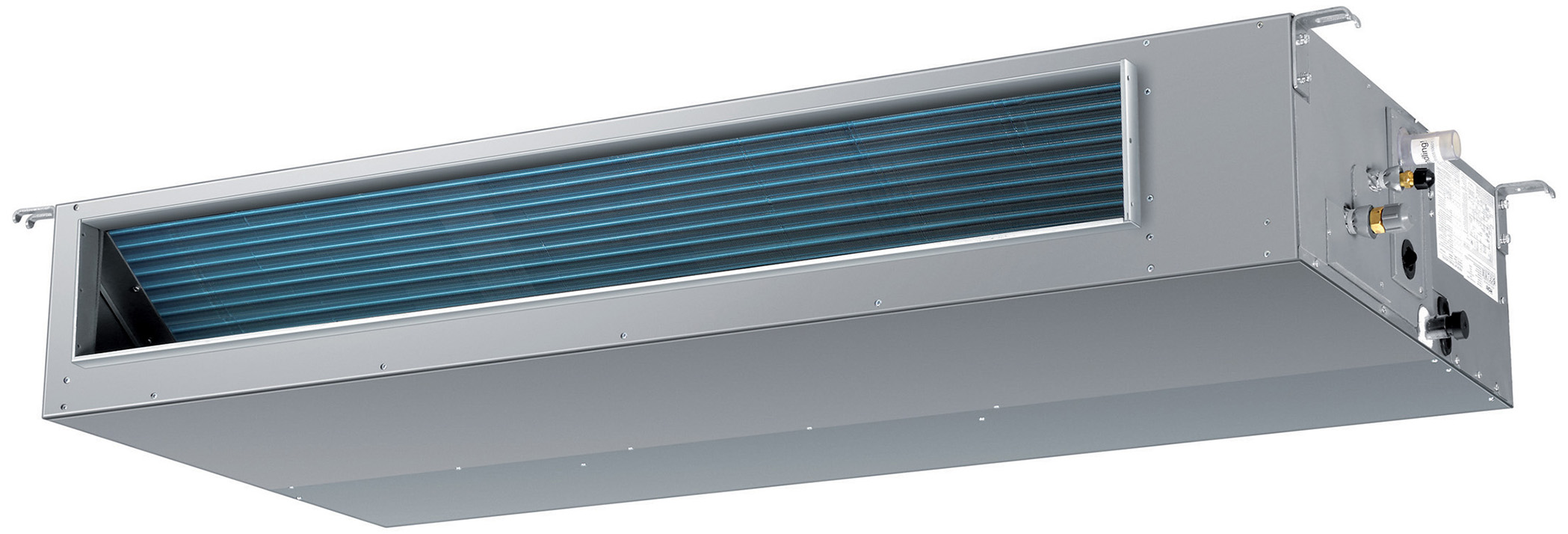

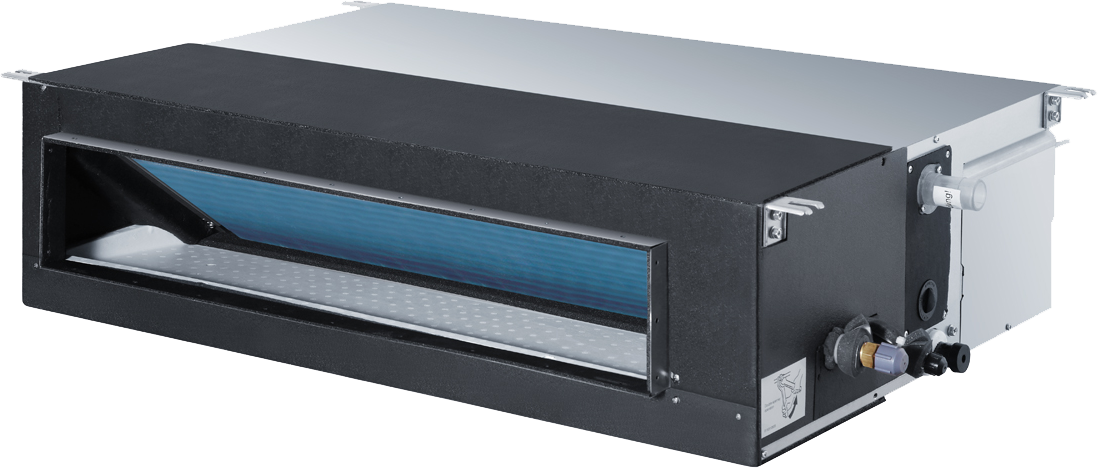

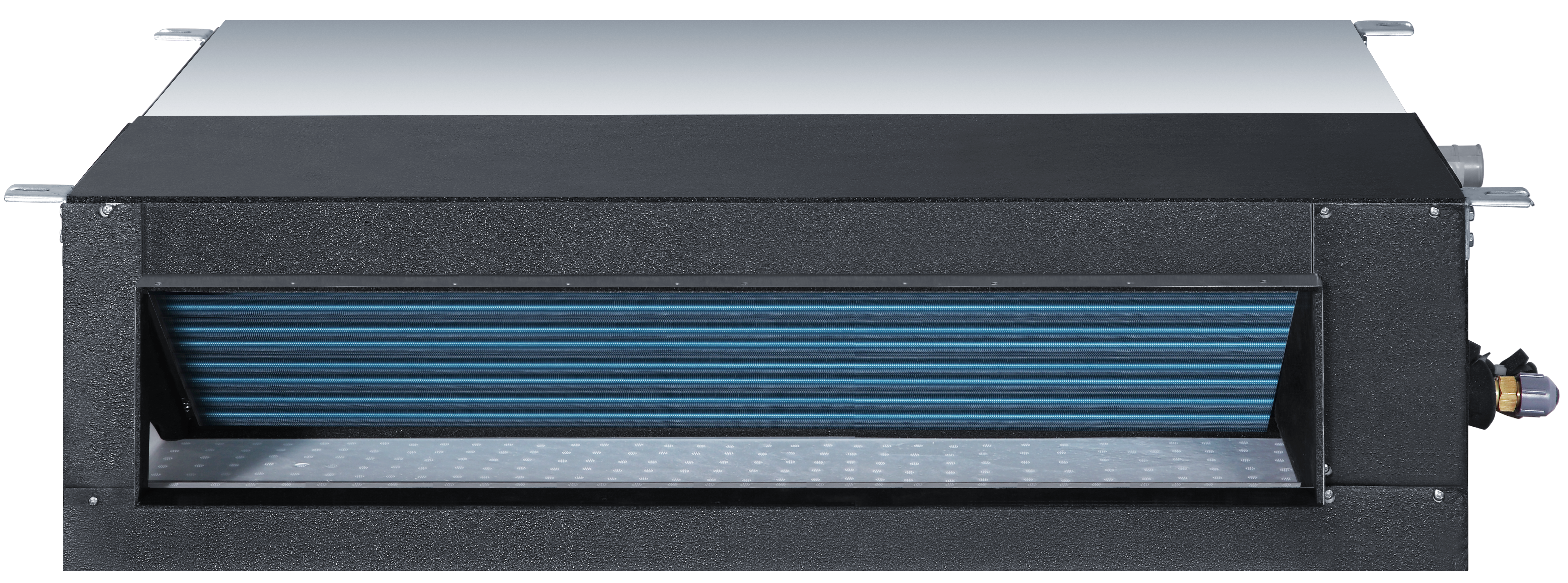

Ducted Medium Pressure - Maxisplit
Part of the Maxi Split Range, the Haier Ducted Medium Pressure are designed to ensure better air distribution.
Fresh Air
The exchange of air allows the introduction of clean air into the environment. The "Fresh Air" air inlet predisposition introduces fresh air into the room, up to a maximum of 20% of the nominal air flow of the unit.
Condensate Drain Pump
This guarantees a maximum prevalence of 600 mm measured from the base of the machine.
There is the possibility of performing condensate drain by gravity (reversible on both sides).
Compact Design
The unit has a compact design for flexible installation in confined spaces.
Easy Installation
A simplified installation procedure allows the installer to work more efficiently, enabling quicker installation and greater customer service, especially during the peak season.
Silence 26 dB(A)
A low level of noise ensures peace of mind thanks to the optimised design of the fan, air ducts and
motor.
Technical Specifications | Ducted Medium Pressure - Maxisplit
Documentation
| User Manuals |
|---|
| Model No: AD35S2SM3FA(H), AD50S2SM3FA(H), AD71S2SM3FA(H) | 230807_UM-IM_COM_DUCTED_MEDIUM_PRESSURE-35-50-71-EN-MULTI.pdf | Click here to download |
| Certification |
|---|
| Model No: AD35S2SM3FA(H), AD50S2SM3FA(H), AD71S2SM3FA(H) | 240522_HQD EU DoC AC below 12 kW without WIFI.pdf | Click here to download |
| Model No: AD35S2SM3FA(H), AD50S2SM3FA(H), AD71S2SM3FA(H) | DC_ACWI12_230213EN.pdf | Click here to download |
| Energy Labels |
|---|
| Model No: AD35S2SM3FA(H), AD50S2SM3FA(H), AD71S2SM3FA(H) | ErP_AD50S2SM3FA(H)_1U50S2SJ2FA-2.pdf | Click here to download |
| Model No: AD35S2SM3FA(H), AD50S2SM3FA(H), AD71S2SM3FA(H) | ErP_AD71S2SM3FA(H)_1U71S2SR2FA.pdf | Click here to download |
