Full DC Inverter 3-Pipe Heat Recovery Systems

Products > MRV 5-RC

MRV 5-RC

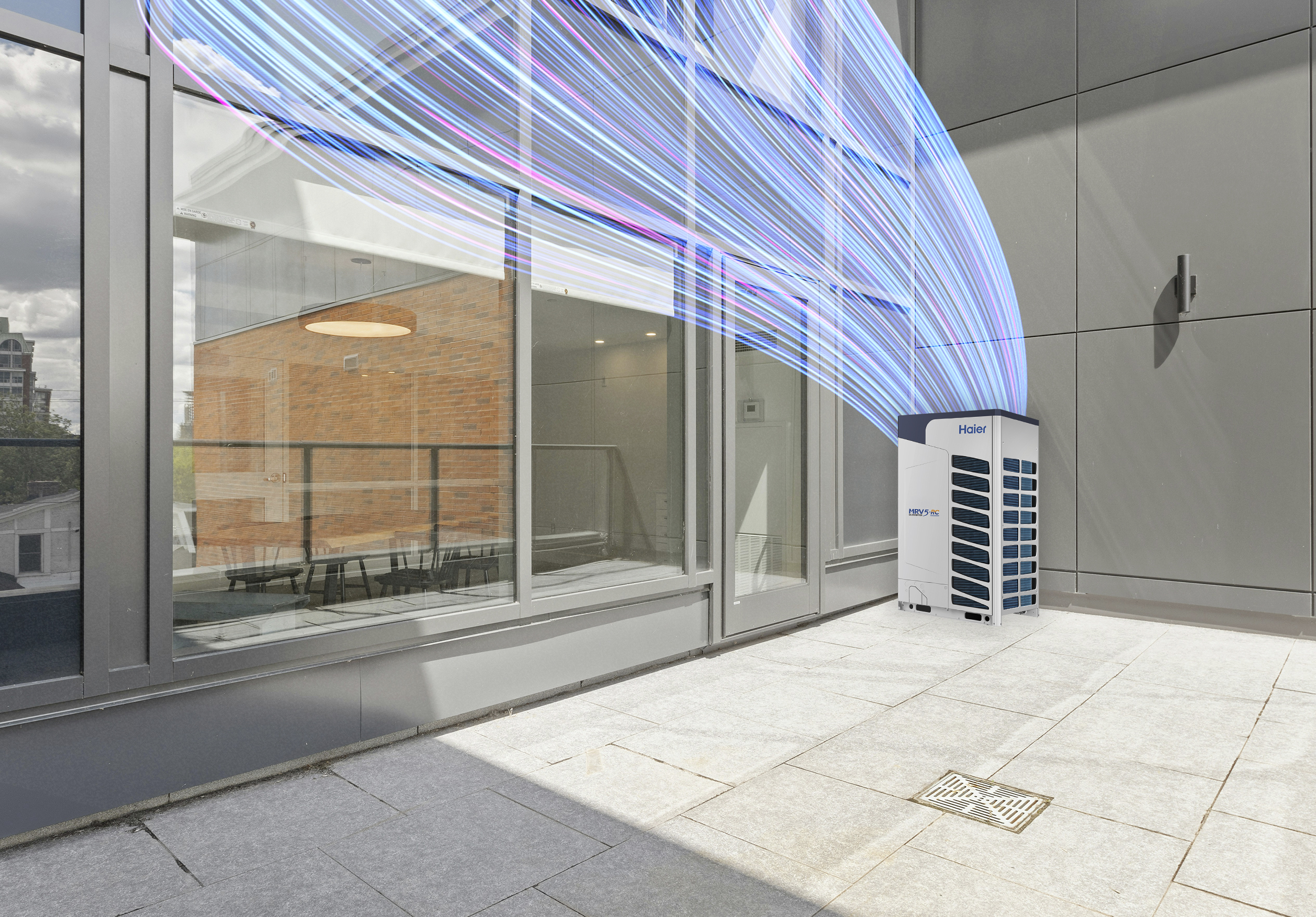

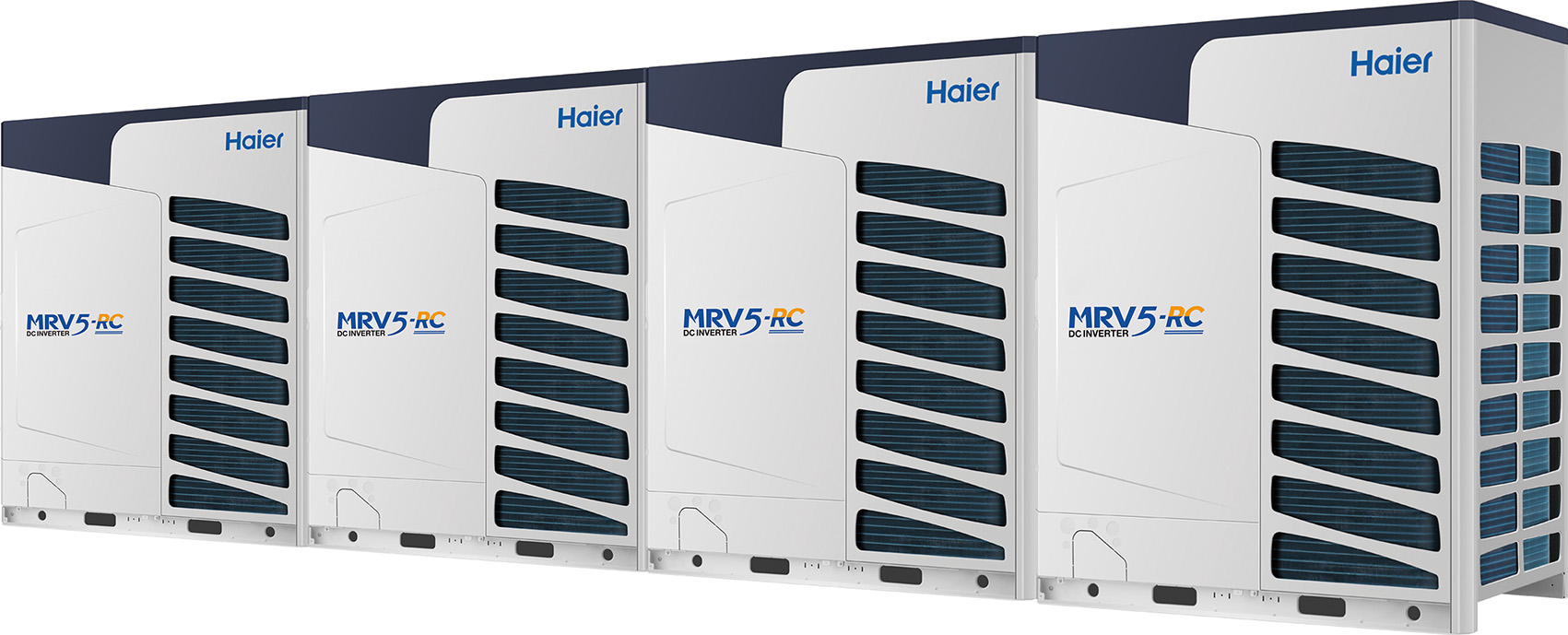

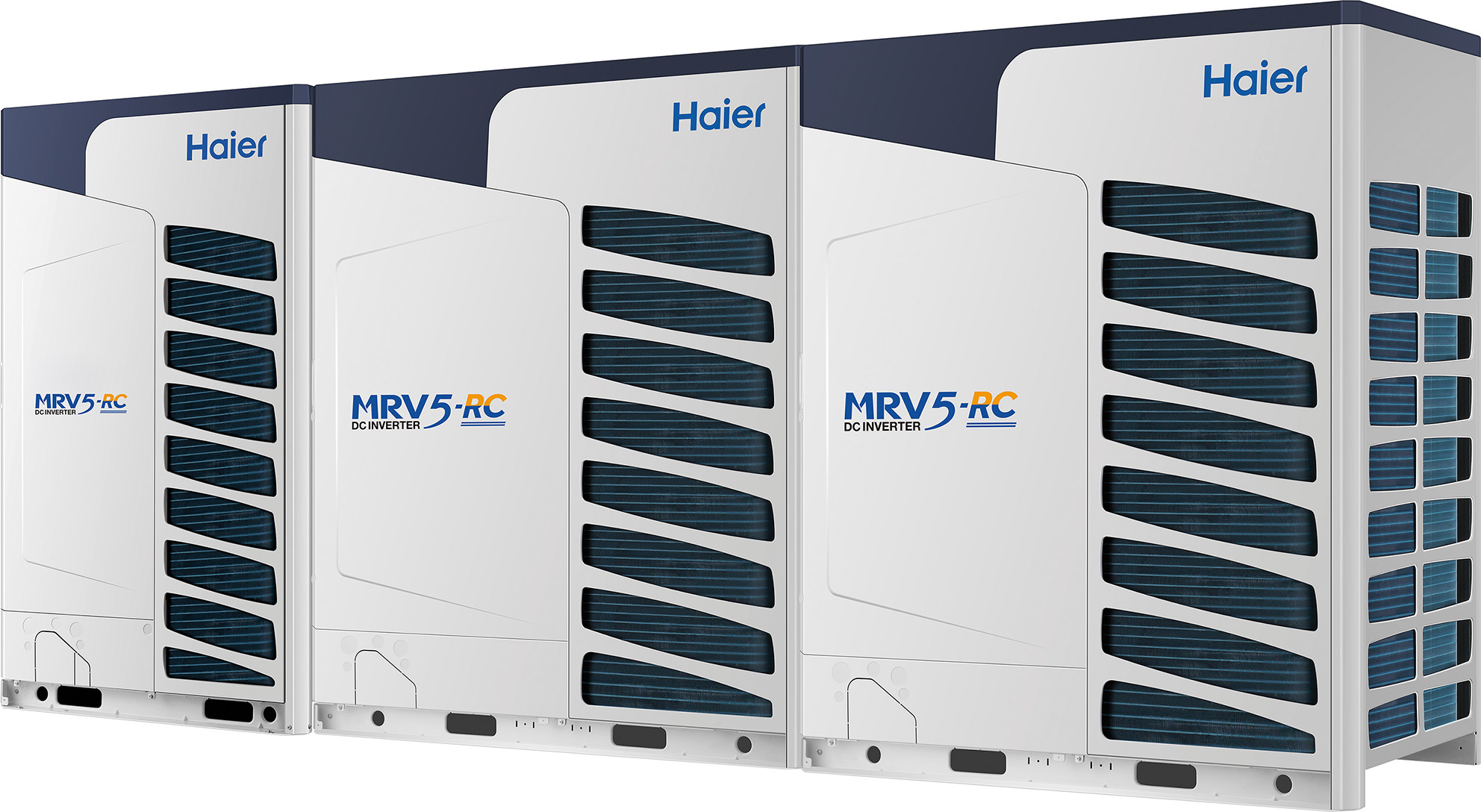

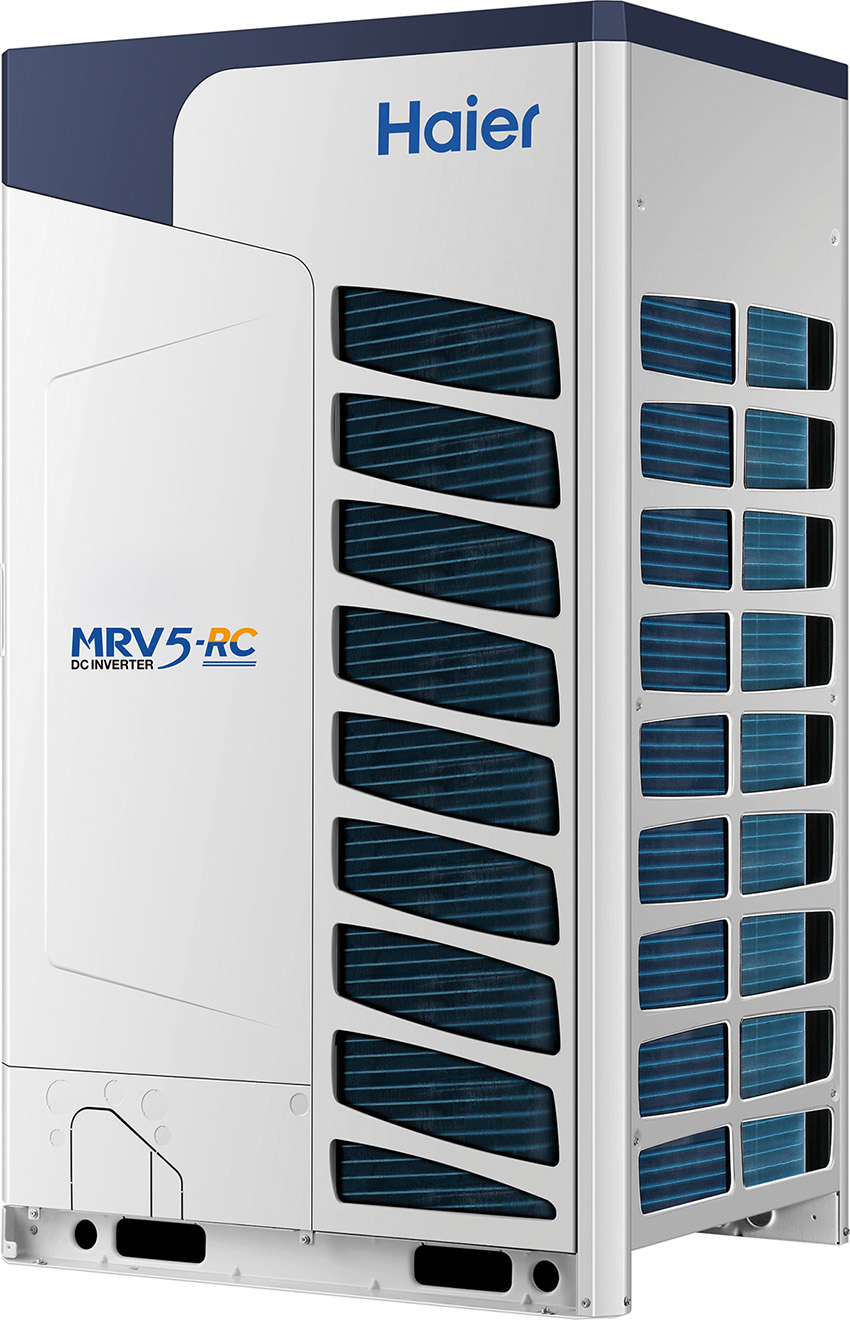

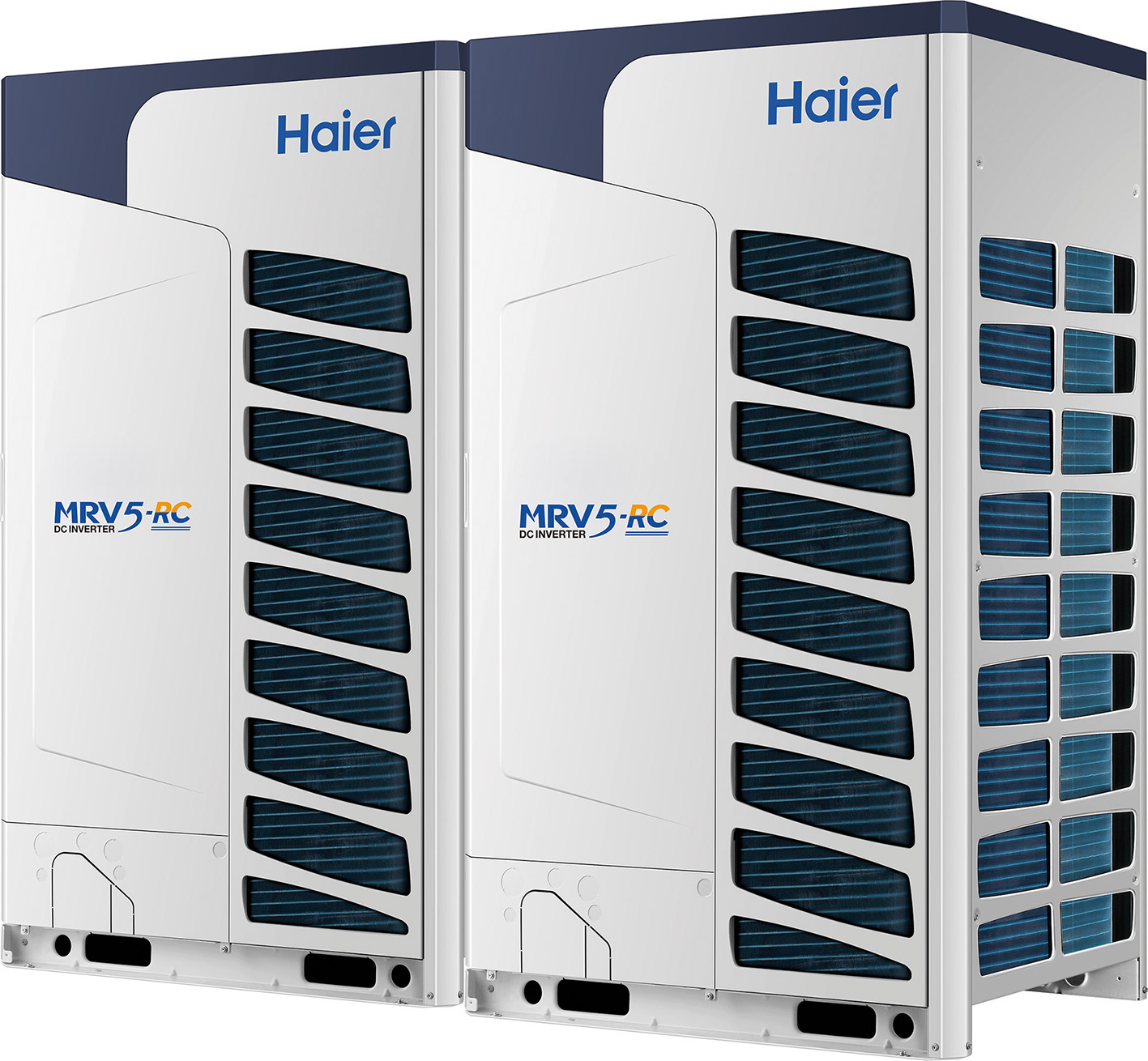

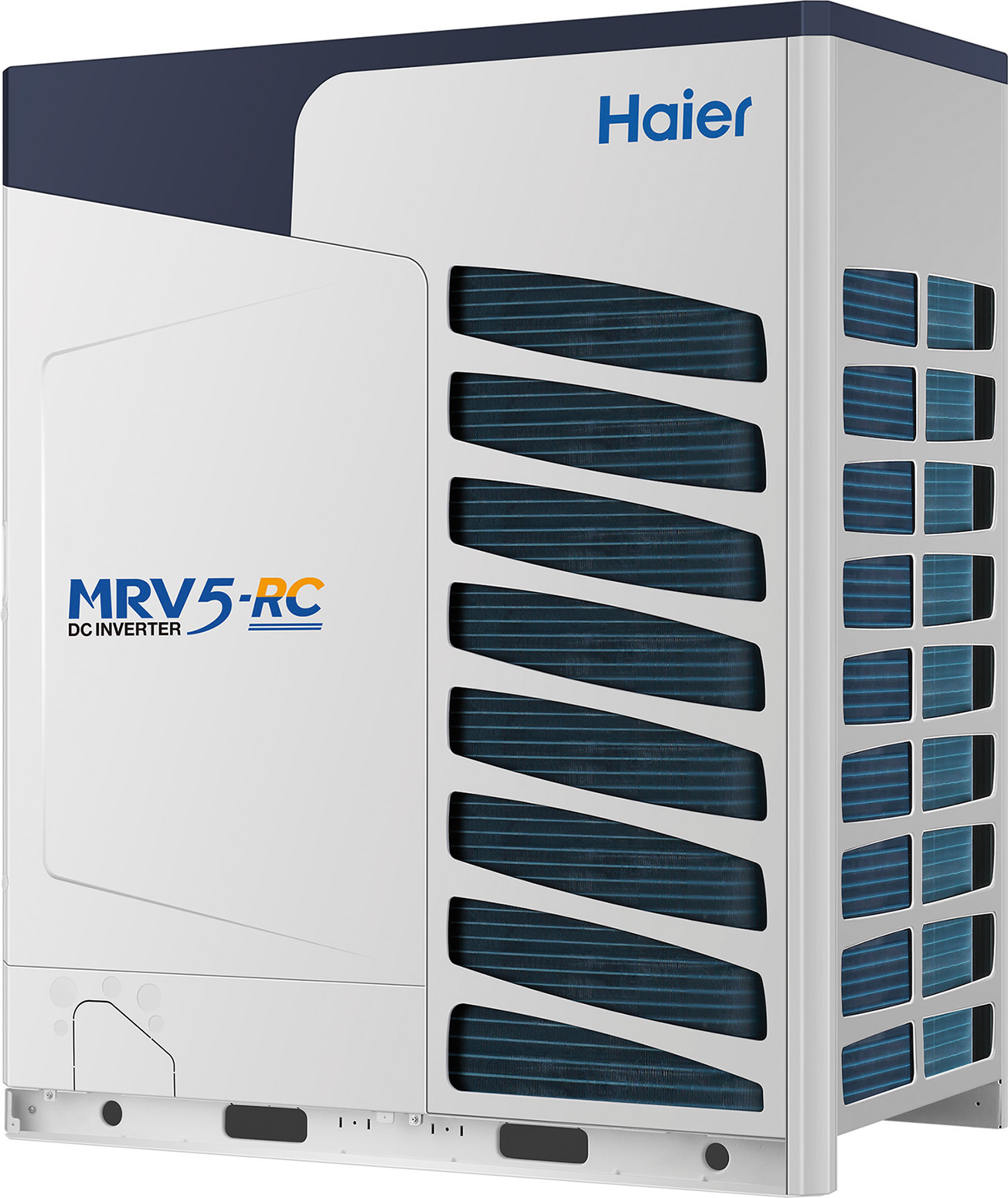

The MRV 5-RC Outdoor Unit is a Full DC Inverter Unit with 3-pipe Heat Recovery Systems, allowing simultaneous Cooling and Heating. The unit offers flexible installation, with the ability to reverse the orientation of the series. The MRV 5-RC offers a wide range of powers: up to 22 HP with a single module and up to 88 HP combining up to 4 modules.

Product Videos

View Specification View Documentation See More
Pipe length 1000m
The unit offers a long pipe length that can go up to 1000m, for extra flexibility during installation.
110 Pa
The unit's static pressure is 110 Pa
8 - 88 HP
The power of the MRV 5-RC ranges from 8-88 HP.
Flexible Installation
Thanks to its smart design, the unit can be installed in many different ways and in various area.
Modbus
The unit integrates the MODBUS RTU communication protocol and can be connected to a third party BMS or BAS directly, without the need for an additional Modbus gateway.
R410a
This unit is running under refrigerant R410a.
Smart Link
New unique Wi-Fi wireless communication system between outdoor and indoor units (optional)

Additional Information

The MRV 5 RC series offer simultaneous Heating and Cooling, available with 2 and 3-pipe heat recovery outdoor unit.

Pipe System MRV 5 RC

Technical Specifications | MRV 5-RC

MRV 5-RC - MRV - ENG View PDF

Documentation

Certification
Model No: AV08IMVURA, AV10IMVURA, AV12IMVURA, AV14IMVURA, AV16IMVURA, AV18IMVURA, AV20IMVURA, AV22IMVURA, AV24IMVURA, AV26IMVURA, AV28IMVURA, AV30IMVURA, AV32IMVURA, AV34IMVURA, AV36IMVURA, AV38IMVURA, AV40IMVURA, AV42IMVURA, AV44IMVURA, AV46IMVURA, AV48IMVURA, AV50IMVURA, AV52IMVURA, AV54IMVURA, AV56IMVURA, AV58IMVURA, AV60IMVURA, AV62IMVURA, AV64IMVURA, AV66IMVURA, AV68IMVURA, AV70IMVURA, AV72IMVURA, AV74IMVURA, AV76IMVURA, AV78IMVURA, AV80IMVURA, AV82IMVURA, AV84IMVURA, AV86IMVURA, AV88IMVURA 250723_DC_CAC_RED.pdf Click here to download
Model No: AV08IMVURA, AV10IMVURA, AV12IMVURA, AV14IMVURA, AV16IMVURA, AV18IMVURA, AV20IMVURA, AV22IMVURA, AV24IMVURA, AV26IMVURA, AV28IMVURA, AV30IMVURA, AV32IMVURA, AV34IMVURA, AV36IMVURA, AV38IMVURA, AV40IMVURA, AV42IMVURA, AV44IMVURA, AV46IMVURA, AV48IMVURA, AV50IMVURA, AV52IMVURA, AV54IMVURA, AV56IMVURA, AV58IMVURA, AV60IMVURA, AV62IMVURA, AV64IMVURA, AV66IMVURA, AV68IMVURA, AV70IMVURA, AV72IMVURA, AV74IMVURA, AV76IMVURA, AV78IMVURA, AV80IMVURA, AV82IMVURA, AV84IMVURA, AV86IMVURA, AV88IMVURA DC_MRV_HQD EU DoC AC over 12 kW without WIFI_240418.pdf Click here to download
