Outdoor Units - Multisplit

Products > Outdoor Units - Multisplit

Outdoor Units - Multisplit

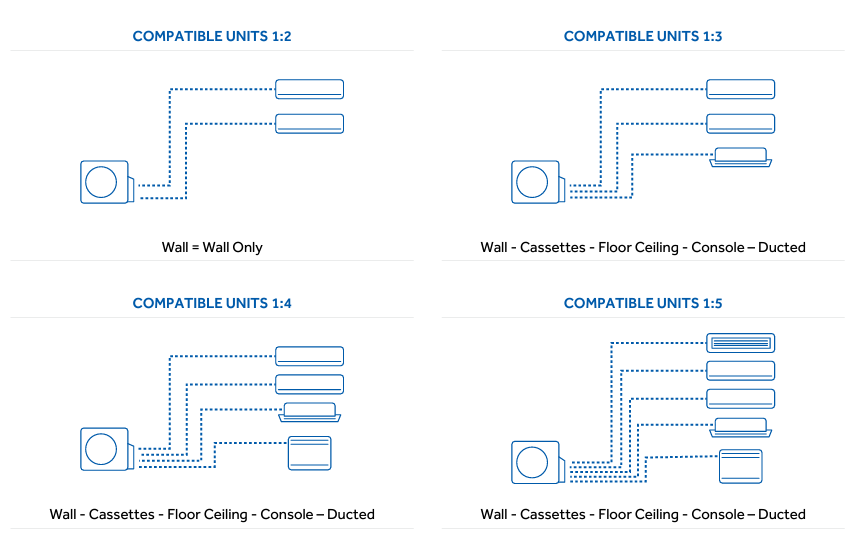

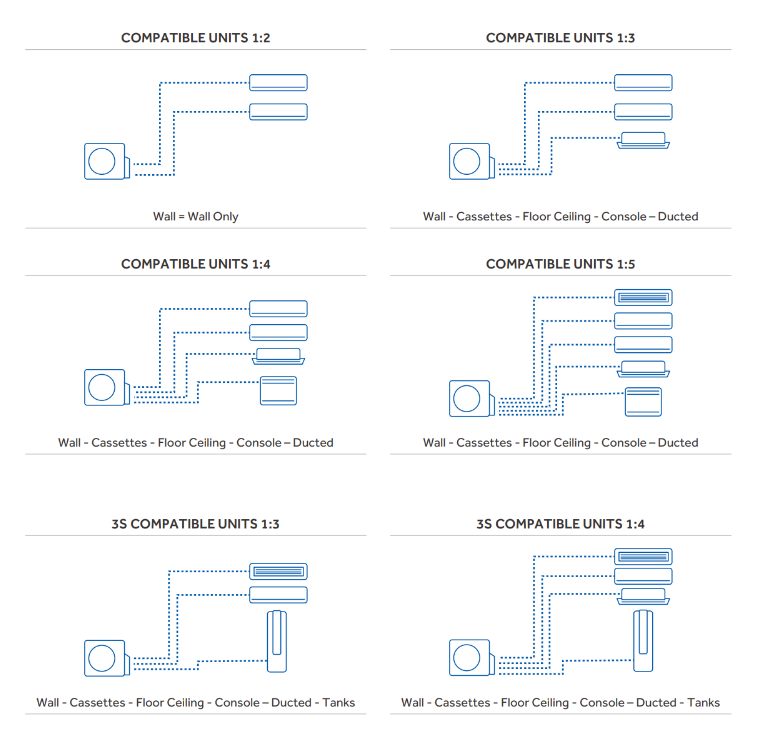

Haier’s Multi-Split system enables you to experience climate comfort in every room. A Multi system allows up to 5 indoor units to operate from a single outdoor unit, thereby reducing installation space and costs. All indoor units can be controlled independently and do not need to be installed at the same time, the system can be future-proofed to allow up to 5 indoor units to one outdoor unit. Haier’s range of indoor units caters for a wide verity of applications, this includes, wall-mounted, concealed ceiling, cassettes and floor-standing units. These units are available in a range of capacities which enables you to accurately size the system according to the needs of the room.

Product Videos

View Specification View Documentation See More

Additional Information

Technical Specifications | Outdoor Units - Multisplit

Outdoor Units Multisplit - Com. - ENG View PDF
