Ducted Medium Pressure - Multisplit

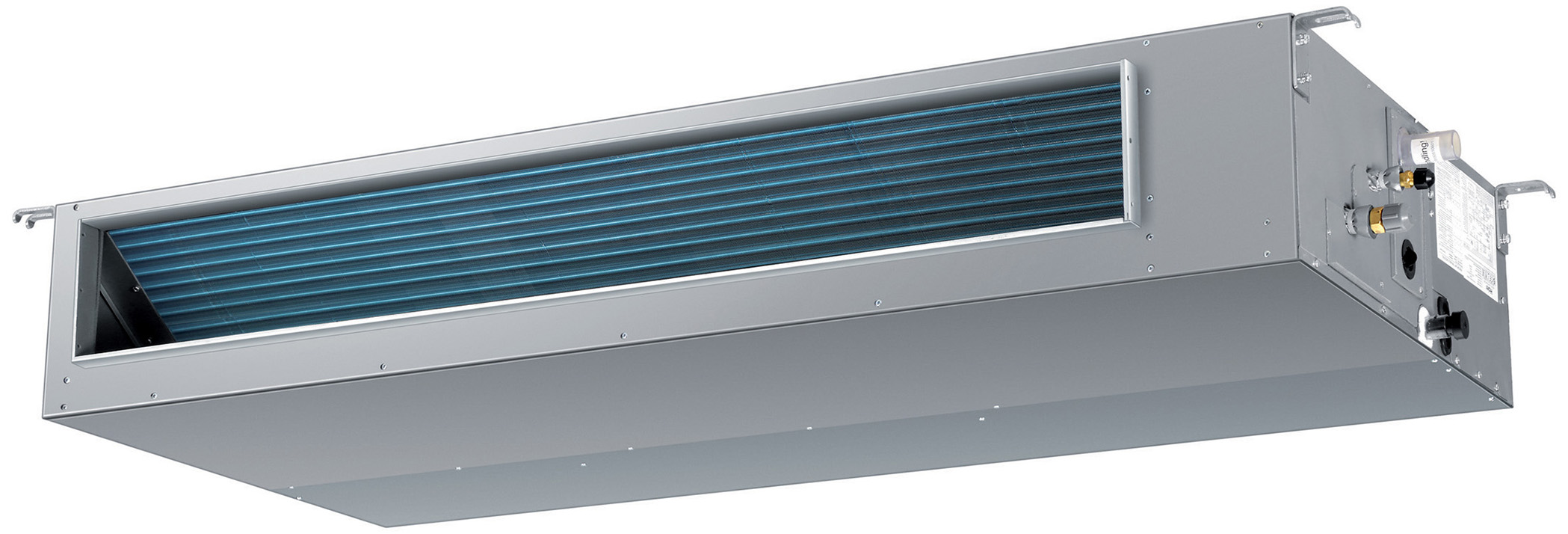

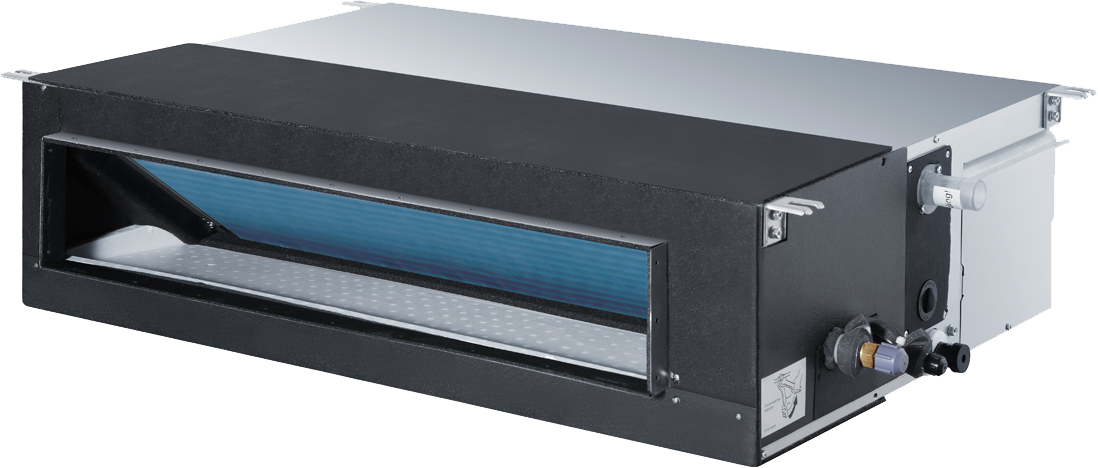

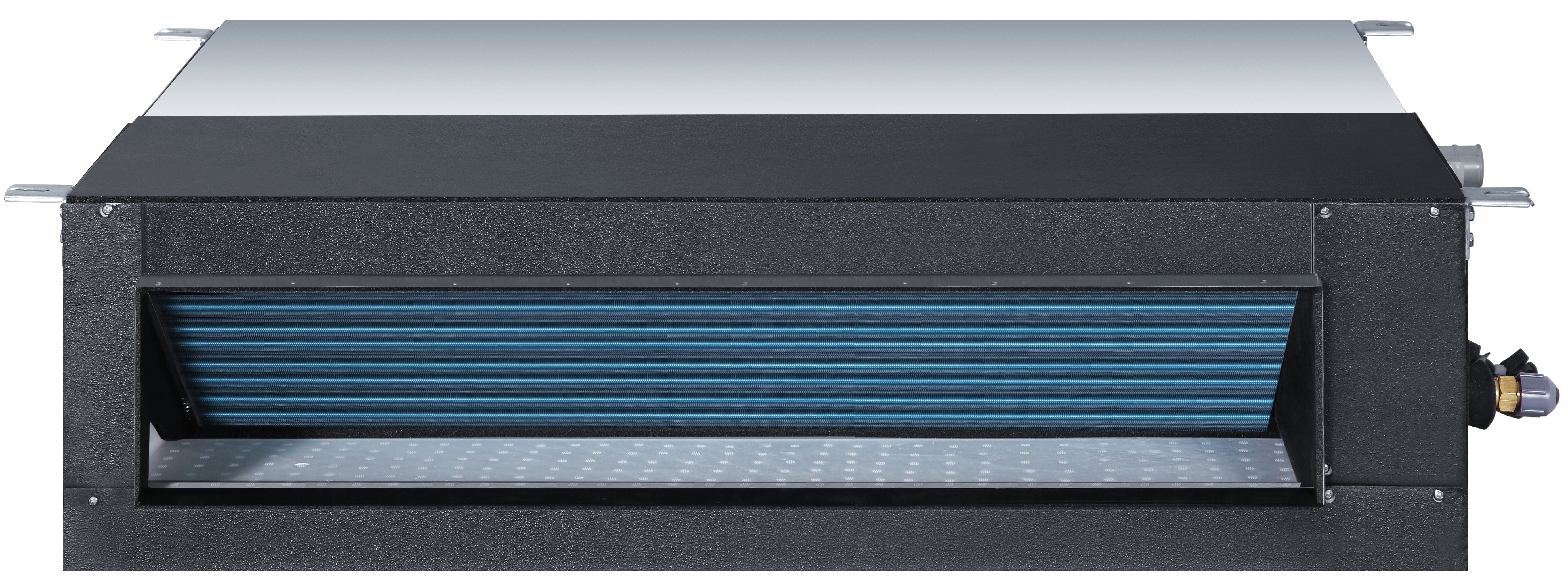

The Ducted Medium Pressure units, available in 3.5kW, 5.0kW and 7.1kW, are designed to be as flexible as possible to offer multiple installation solutions.
Equipped with premium features such as the UVC Sterilisation module and the hOn Wi-Fi control, the Ducted Medium Pressure combines smart and comfortable air. The medium-pressure ducted units include a condensate drain pump as standard. This guarantees a maximum prevalence of 600 mm measured from the base of the machine. There is the possibility of performing a condensate drain by gravity (reversible on both sides).
Fresh Air
The exchange of air allows the introduction of clean air into the environment. The "Fresh Air" air inlet predisposition introduces fresh air into the room, up to a maximum of 20% of the nominal air flow of the unit.
Condensate Drain Pump
This guarantees a maximum prevalence of 600 mm measured from the base of the machine.
There is the possibility of performing condensate drain by gravity (reversible on both sides).
Compact Design
The unit has a compact design for flexible installation in confined spaces.
hOn WiFi
The hOn app enables to take control of all the Haier appliances in your Smart Home from your smartphone or tablet. The app allows the management of all the basic functions, respond to voice commands because it is compatible with vocal assistants, and more.
Easy Installation
A simplified installation procedure allows the installer to work more efficiently, enabling quicker installation and greater customer service, especially during the peak season.
UVC Sterilisation
The UVC Sterilisation module help keeping a healthy and clean indoor air. Haier’s UVC generator has received a Certificate of Inactivation on the Novel Coronavirus, from leading Texcell S,A, an independent viral testing laboratory in France.
Silence 26 dB(A)
A low level of noise ensures peace of mind thanks to the optimised design of the fan, air ducts and motor.
Technical Specifications | Ducted Medium Pressure - Multisplit
Documentation
| User Manuals |
|---|
| Model No: AD35S2SM3FA(H), AD50S2SM3FA(H), AD71S2SM3FA(H) | 230807_UM-IM_COM_DUCTED_MEDIUM_PRESSURE-35-50-71-EN-MULTI.pdf | Click here to download |
| Certification |
|---|
| Model No: AD35S2SM3FA(H), AD50S2SM3FA(H), AD71S2SM3FA(H) | 240522_HQD EU DoC AC below 12 kW without WIFI.pdf | Click here to download |
| Model No: AD35S2SM3FA(H), AD50S2SM3FA(H), AD71S2SM3FA(H) | DC_ACWI12_230213EN.pdf | Click here to download |
| Energy Labels |
|---|
| Model No: AD35S2SM3FA(H), AD50S2SM3FA(H), AD71S2SM3FA(H) | ErP_AD50S2SM3FA(H)_1U50S2SJ2FA-2.pdf | Click here to download |
| Model No: AD35S2SM3FA(H), AD50S2SM3FA(H), AD71S2SM3FA(H) | ErP_AD71S2SM3FA(H)_1U71S2SR2FA.pdf | Click here to download |
| Model No: AD35S2SM3FA(H), AD50S2SM3FA(H), AD71S2SM3FA(H) | ErP_AD35S2SM3FA(H)_1U35S2SM1FA-2.pdf | Click here to download |
